| Product Identification | Surface finish | Inlet Dimension | Max Wrk. Pressure | Max Op. Temp. | Marking | Marking Location | All metals in the water pathway are on the 4msi positive list | Headwork | Fixing Type | Spout Outlet | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1188-** | Various | 3/4" BSP (M) | 5 bar | 65 °C | CARLOTA | Body | No | 1/4 Turn ceramic disc | Metal Backnuts | Flow Straightener | |
| 1271-** | Various | 3/4" BSP (M) | 5 bar | 65 °C | CARLOTA | Body | No | 1/4 Turn ceramic disc | Metal Backnuts | Flow Straightener | |
| 1274-** | Various | 3/4" BSP (M) | 5 bar | 65 °C | CARLOTA | Body | No | 1/4 Turn ceramic disc | Metal Backnuts | Flow Straightener | |
| 1313-** | Various | 3/4" BSP (M) | 5 bar | 65 °C | CARLOTA | Body | No | 1/4 Turn ceramic disc | Metal Backnuts | Flow Straightener | |
| 1320-** | Various | 3/4" BSP (M) | 5 bar | 65 °C | CARLOTA | Body | No | 1/4 Turn ceramic disc | Metal Backnuts | Aerator | |
| 1322-** | Various | 3/4" BSP (M) | 5 bar | 65 °C | CARLOTA | Body | No | 1/4 Turn ceramic disc | Metal Backnuts | Aerator | |
| 1322A-** | Various | 3/4" BSP (M) | 5 bar | 65 °C | CARLOTA | Body | No | 1/4 Turn ceramic disc | Metal Backnuts | Aerator | |
| 1322B-** | Various | 3/4" BSP (M) | 5 bar | 65 °C | CARLOTA | Body | No | 1/4 Turn ceramic disc | Metal Backnuts | Aerator |
Where** represents finish and can be replaced by: CR=Chrome plated MB=Matt black BB=Brushed brass BN=Brushed nickel GM=Gun Metal
Range of three-hole, single outlet (fixed) wall mounted, concealed tap assemblies, (brass bodies - various trim sets). Product is supplied with a rough in set BDM-MIX-C309-T2 and external trim (see models). Incorporating quarter turn ceramic disc headworks and various operating members. The spout outlet incorporates a plastic aerator. Maximum working pressure 5.0 bar. Maximum operating temperature 60°C.
XX’ denotes finish and is replaced with: Chrome(CP), Brushed Nickel (NB), Matt Black(MB), Anthracite (AN), Gold (GD), PVD Gold (PG), Soft Bronze (SBZ), Santiago (RCP), Oyster (OYS), Brushed Steel (BS) Burgundy (BUR), Black (MB-C), Cocoa (CO-C), Mandarin (MD-C), Blueberry (BY-C), Lip Gloss (Pink)(LG-C), Sage (SA-C) & Truffle (TF-C)
Range of combined bath fillers and overflow waste assemblies (plated brass covers and plastic hoses) with pop-up wastes. Maximum operating temperature 65ºC. Open outlet use only.
Range of water filters comprising of a carbon block cartridge and head, for use with LLDPE tube (manufactured to DIN 8072). Maximum working pressure 6.0 bar. Cold water use only.
Range of brass compression fittings for use with copper pipes (manufactured to EN 1057). Maximum working pressure 10.0 bar.
Non-metallic materials and components comply with BS6920 at 85°C
Models codes CXC & CXRC X = "C" for Chrome plated or "O" for Brass.
Plastic bodied push fit fittings for use with Shin Won Tube Co., Ltd. SWPE™ (LLDPE) tube, (not covered by the scope of this approval). Maximum working pressure 10.0 bar. Cold water use only.
| Product Identification | Surface finish | Inlet Dimension | Max Wrk. Pressure | Max Op. Temp. | Marking | Marking Location | All metals in the water pathway are on the 4msi positive list | Headwork | Fixing Type | Spout Outlet | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gaia 200 Overhead - 1589805 | White/Chrome | 15mm | Open Outlet bar | 50 °C | Kohler Mira Limited | "Kohler Mira Limited" on top of overheads | No | No | Not Applicable | Not Applicable | |
| Gaia 200 Overhead - 1621057 | Black/White | 15mm | Open Outlet bar | 50 °C | Kohler Mira Limited | "Kohler Mira Limited" on top of overheads | No | No | Not Applicable | Not Applicable | |
| 100 FOKUS HANDSET - 1555570 | CHROME | 15mm | Open Outlet bar | 50 °C | Mira Showers | “Mira Showers” logo on front lower handset | No | No | Not Applicable | Not Applicable | Handset, |
| 100 FOKUS HANDSET - 1555588 | BLACK | 15mm | Open Outlet bar | 50 °C | Mira Showers | “Mira Showers” logo on front lower handset | No | No | Not Applicable | Not Applicable | Handset, |
| Product Identification | Surface finish | Inlet Dimension | Max Wrk. Pressure | Max Op. Temp. | Marking | Marking Location | All metals in the water pathway are on the 4msi positive list | Headwork | Fixing Type | Spout Outlet | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AOOSCPUK | Chrome | 1/2" BSP (F) | 0 bar | 60 °C | Methven | on shower handset. | No | Handset, | |||
| AOOSBKUK | Black | 1/2" BSP (F) | 0 bar | 60 °C | Methven | on shower handset. | No | Handset, |
| Product Identification | Surface finish | Inlet Dimension | Max Wrk. Pressure | Max Op. Temp. | Marking | Marking Location | All metals in the water pathway are on the 4msi positive list | Headwork | Fixing Type | Spout Outlet | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1001450AQXX | various | 1/2" BSP (F) | Open outlet bar | 60 °C | Aqualisa | Body | No | Fixed Head, | |||
| 1001447AQXX | various | 1/2" BSP (F) | Open outlet bar | 60 °C | Aqualisa | Body | No | Fixed Head, | |||
| 1001445AQXX | various | 1/2" BSP (F) | Open outlet bar | 60 °C | Aqualisa | Body | No | Fixed Head, |
Fixed Head in 4 different colours - Chrome, Matt Black, Brushed Brass and Gunmetal Grey AQ = Aqualisa XX = AA , AD , AJ , AH AQAA - Chrome AQAD - Matt Black AQAJ - Gunmetal Grey AQAH - Brushed Brass
Electronic pressure switches housed in a plastic body with a ceramic sensor and NBR gaskets and/or ‘O’-rings. Maximum working pressure 12.0 bar. Cold water only.
| Product Identification | Surface finish | Inlet Dimension | Max Wrk. Pressure | Max Op. Temp. | Marking | Marking Location | All metals in the water pathway are on the 4msi positive list | Headwork | Fixing Type | Spout Outlet | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 61408 | Chrome plated | 3/4" BSP (M) | 10 bar | 85 °C | Bokeya | Rear of Body | No | 1/4 Turn ceramic disc | Metal Backnuts | Flow Straightener | |
| 61108 | Chrome plated | 3/4" BSP (M) | 10 bar | 85 °C | Bokeya | Rear of Body | No | 1/4 Turn ceramic disc | Metal Backnuts | Flow Straightener | |
| 51508AQ | Chrome plated | 3/4" BSP (M) | 10 bar | 85 °C | Bokeya | Rear of Body | No | 1/4 Turn ceramic disc | Metal Backnuts | Flow Straightener |

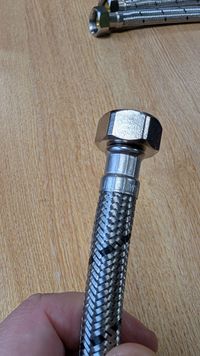

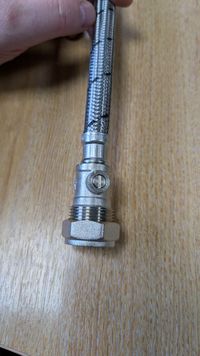

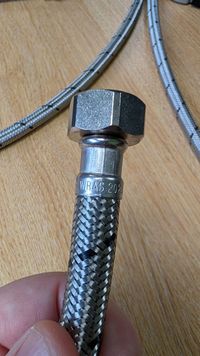

Range of stainless steel, stainless steel with nylon or nylon braided, EPDM lined flexible hose assemblies with DZR brass end connections. Some models incorporate spherical valves. Compression connections are for use with copper pipe (manufactured to EN 1057). Maximum working pressure 10.0 bar. Maximum operating temperature 85°C
Range of wall mounted, concealed, manually operated blending valves, (brass bodies - various finish trim kits), incorporating ceramic cartridge headworks with single lever operating members. Maximum working pressure 5.0 bar. Maximum operating temperature 60°C.
XX’ denotes finish and is replaced with: Chrome(CP), Brushed Nickel (NB), Matt Black(MB), Anthracite (AN), Gold (GD), PVD Gold (PG), Soft Bronze (SBZ), Santiago (RCP), Oyster (OYS), Brushed Steel (BS) Burgundy (BUR), Black (MB-C), Cocoa (CO-C), Mandarin (MD-C), Blueberry (BY-C), Lip Gloss (Pink)(LG-C), Sage (SA-C), Truffle (TF-C) Baby Pink (BP-C) Misty Grey (MG-C)
| Product Identification | Surface finish | Inlet Dimension | Max Wrk. Pressure | Max Op. Temp. | Marking | Marking Location | All metals in the water pathway are on the 4msi positive list | Headwork | Fixing Type | Spout Outlet | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FRM SHCDIV C | CHROME | 15mm Compression | 5.0 bar | 85 °C | Bristan | Faceplate | No | 1/4 Turn ceramic disk | Not Applicable | Not Applicable | |
| FRM SHCDIV BLK | BLACK | 15mm Compression | 5.0 bar | 85 °C | Bristan | Faceplate | No | 1/4 Turn ceramic disk | Not Applicable | Not Applicable | |
| FRM SHCDIV GM | GUN METAL | 15mm Compression | 5.0 bar | 85 °C | Bristan | Faceplate | No | 1/4 Turn ceramic disk | Not Applicable | Not Applicable | |
| FRM SHCDIV BB | BRUSHED BRASS | 15mm Compression | 5.0 bar | 85 °C | Bristan | Faceplate | No | 1/4 Turn ceramic disk | Not Applicable | Not Applicable |
Model added February 2026: RP3 SAI SHCDIV C
Range of non-return valves with bronze bodies and discs. Maximum working pressure 20.0 bar. Maximum operating temperature 85°C.
Range of non-return valves with bronze bodies and discs. Maximum working pressure 20.0 bar. Maximum operating temperature 85°C.
Range of in-line adjustable pressure reducing valves, with nickel plated DZR brass bodies and stainless-steel strainer. Various models are supplied with a pressure gauge (see model). Compression models are for use with BS EN1057 copper pipe. Maximum working pressure 16.0 Bar. Outlet pressure range: 0.8-6.0 bar. Maximum operating temperature 80°C.
Range of pilot operated pressure reducing valves with ductile iron bodies (blue epoxy coating) All models are fitted with a pressure reducing pilot valve, a needle valve and spherical valves. Maximum inlet supply pressure 16.0 bar. The outlet pressure is adjustable between 2.0 to 13.0~16.0 bar. Maximum operating temperature 65°C.
Range of pilot operated pressure reducing valves with ductile iron bodies (blue epoxy coating) All models are fitted with a pressure reducing pilot valve, a needle valve and spherical valves. Maximum inlet supply pressure 16.0 bar. The outlet pressure is adjustable between 2.0 to 13.0~16.0 bar. Maximum operating temperature 65°C.
Range of resilient seated gate valves with cast iron bodies (blue epoxy coated), EPDM coated cast iron wedges and a handwheel operating member. Maximum working pressure 16.0 bar.
Non-metallic materials and components comply with BS6920 at 85°C
