Section Code 2200 : Pressure reducing.
Back To Directory Sections`Eurobrass 143` range of adjustable in-line pressure reducing valves with DZR brass bodies and diaphragms, incorporating EPDM seals and stainless-steel seats. Maximum supply pressure 25.0 bar. Outlet pressure setting is adjustable in the range 2.5 to 6.0 bar. Maximum operating temperature 80°C.
`PEGLER PRV 4 PT` range of adjustable in-line pressure reducing valves with DZR brass bodies and diaphragms, incorporating EPDM seals and stainless-steel seats. Maximum supply pressure 25.0 bar. Outlet pressure setting is adjustable in the range 2.5 to 6.0 bar. Maximum operating temperature 80°C.
`F96100` range of adjustable in-line pressure reducing valves with DZR brass bodies and diaphragms, incorporating EPDM seals and stainless-steel seats. Maximum supply pressure 25.0 bar. Outlet pressure setting is adjustable in the range 2.5 to 6.0 bar. Maximum operating temperature 80°C.
Range of adjustable, in-line pressure reducing valves with plastic bodies and NBR ‘O’-rings. Maximum inlet supply pressure 16.0 bar. Maximum outlet pressure between 1.0 bar and 6.5 bar. Cold water use only.
Range of in-line adjustable (between 2.8 and 3.2 bar) pressure reducing valves with chrome plated DZR brass bodies and NBR ‘O’ rings. The valves incorporate test ports on the outlet side of the valve and a stainless-steel strainer. Maximum supply pressure 16.0 bar. Maximum operating temperature 85°C.
In-line adjustable pressure reducing valves with DZR brass bodies and NBR ‘O’-rings. The outlet pressures can be set in the range 1.5-6.0 bar via an adjustment screw located on the cap. Maximum inlet supply pressure 16.0 bar. Maximum operating temperature 60°C
Range of adjustable, in-line pressure reducing valves with DZR brass bodies incorporating NBR ‘O’-rings. The products have either a high or a low pressure spring. Maximum inlet supply pressure 5.0 bar. High pressure spring adjustment range between 2.1 - 5.0 bar. Low pressure spring adjustment range between 1.0 bar - 2.0 bar. Cold water use only
Range of unvented monobloc groups consisting of an in-line pressure reducing valve (PRV) (adjustable between 2.7 and 3.3 bar or 3.2 and 3.8 bar - see model) and a pre-set expansion relief valve (SRV) (pre-set at either 4.5, 4.75, 5.0, 6.0 or 8.0 bar - see model) housed in a DZR brass body with an EPDM rubber diaphragm. The product incorporates a check valve cartridge, verified by test (suitable for backflow protection against Fluid Category 2). The expansion relief valve is fitted with a rotary type easing gear. Maximum inlet supply pressure 10.0 bar. Maximum operating temperature 85°C.
In-line, manually adjustable pressure reducing valves with DZR brass bodies, EPDM gaskets and `O` rings. Models with GC suffix are supplied with a pressure gauge. Maximum inlet supply pressure 16.0 Bar. Maximum outlet pressures between 1.5 bar and 6.0 bar. Cold water use only.
Range of in-line adjustable pressure reducing valves with DZR brass bodies and an EPDM diaphragm. Maximum supply pressure 10.0 bar. Outlet pressure setting is adjustable in the range 1.0 to 6.0 bar. Maximum operating temperature 65°C.
Range of in-line adjustable pressure reducing valves with DZR brass bodies and EPDM O-rings. Maximum inlet pressure 16.0 bar. The maximum outlet pressure is factory pre-set but adjustable between 1.5 bar & 5.5 bar. Cold water use only.
Range of adjustable in-line pressure reducing valves with Nickel plated Brass bodies and EPDM diaphragm and seals. Art. 490, 491 & 500 models: maximum supply pressure 8.0 Bar and an outlet pressure range of 1.2 – 6.0 Bar. Art. 501 model: maximum supply pressure of 8.0 Bar and an outlet pressure range of 0.5 – 6.0 Bar. Art. 502 & 505 models: maximum supply pressure of 8.0 Bar and an outlet pressure range of 0.5 – 6.0 Bar for sizes ½” – 1” and 1.0 – 6.0 Bar for sizes 1 ¼” – 2”. Art. 504 model: maximum supply pressure of 8.0 Bar and an outlet pressure range of 0.5 – 6.0 Bar for sizes ½” – 1” and 1.0 – 6.0 Bar for sizes 1 ¼” – 2” and 1.5 – 7.0 Bar for sizes 2 ½” – 3”. Maximum operating temperature 100°C.
Range of adjustable, in-line pressure reducing valves with DZR brass or plated brass bodies, incorporating EPDM diaphragm, ‘O’ rings and a stainless-steel strainer. Models can be supplied with or without gauge port and some models supplied with gauge port and gauge. Maximum inlet supply pressure 16.0 bar. Maximum outlet pressure 1.0 to 5.5 bar (except 533230H & 533430H which has an adjustable pressure range of 0.8 to 4.0 bar) Maximum operating temperature 80°C
Range of pressure reducing valves (factory pre-set at 3.0 bar) but adjustable between 3.0-3.3 bar, with chromium plated DZR brass bodies incorporating an integral stainless-steel strainer. The products can be supplied with a gauge connection. Maximum inlet supply pressure 10.0 bar. Maximum operating temperature 85°C
Range of pre-set, in-line pressure reducing valves incorporating DZR brass or bronze bodies, EPDM diaphragm & ‘O’-rings and a stainless-steel strainer. The valves are supplied factory pre-set at 3.0 bar on existing models or with an adjustable range between 0.5-6.0 bar for models added in June 2020. Maximum inlet supply pressure 25.0 bar. Maximum operating temperature 80°C.
Range of in-line, manually adjustable pressure reducing valves (DZR brass or DZR brass plated bodies) and EPDM rubber seat washers & ‘O’-rings and a stainless steel filter. Minimum and maximum regulated outlet pressure 1.0 – 6.0 bar. Maximum working pressure 16.0 bar. Maximum operating temperature 40°C.

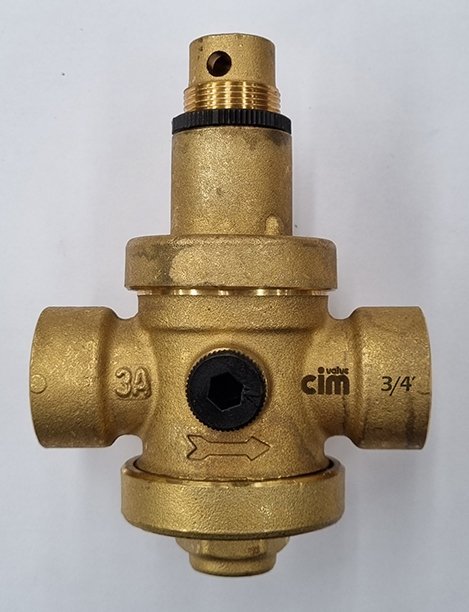

CIM 1430CR range of adjustable in-line pressure reducing valves with DZR brass bodies and diaphragms, incorporating EPDM seals and stainless-steel seats. Maximum supply pressure 25.0 bar. Outlet pressure setting is adjustable in the range 2.5 to 6.0 bar. Maximum operating temperature 80°C.
716 range of adjustable, in-line pressure reducing valves with DZR brass or chrome plated DZR brass bodies, incorporating EPDM diaphragm, ‘O’ rings and a stainless-steel strainer. Valves incorporate two pressure gauge ports (not supplied). Maximum inlet supply pressure 25.0 bar. Maximum outlet pressure 0.5 to 6.5 bar. Maximum operating temperature 85°C.
Range of in-line, manually adjustable pressure reducing valves with DZR brass bodies and EPDM rubber seat washers & ‘O’-rings. Outlet pressure range: 1.0 - 6.0 bar. Maximum working pressure 16.0 bar. Maximum operating temperature 80°C.
Reliance range of in line adjustable pressure reducing valves with DZR brass bodies and EPDM diaphragm. The outlet pressures can be set in the range 1.5 – 5.5 bar via a screw cap. To be used with copper, polybutylene (manufactured to BS7291-2) and PEX (manufactured to BS7291-3) pipes. Maximum inlet supply pressure 16.0 bar. Cold water use only.
BV454W Range of adjustable in-line pressure reducing valves with DZR brass bodies and diaphragms, incorporating EPDM seals and stainless-steel seats. Maximum supply pressure 25.0 bar. Outlet pressure setting is adjustable in the range 2.5 to 6.0 bar. Maximum operating temperature 80°C.
536 series range of adjustable, in-line pressure reducing valves with DZR brass bodies and EPDM ‘O’-rings. The inlet incorporates a stainless steel strainer. Models are supplied with a pressure gauges. Outlet pressure setting ranges between 6.0 and 10.0 bar. Maximum inlet supply pressure 25.0 bar. Maximum operating temperature 80°C.
‘Predator pressure reducing valve’ range of manually adjustable pressure reducing valves with DZR brass bodies, EPDM’O’-rings and a stainless steel filter. The products are adjustable between 1.0 and 6.0 bar and are supplied with an optional pressure gauge. Maximum supply pressure 20.0 bar. Maximum operating temperature 80°C.
Range of adjustable in-line pressure reducing valves with DZR brass bodies and diaphragms, incorporating EPDM seals and stainless-steel seats. Maximum supply pressure 25.0 bar. Outlet pressure setting is adjustable in the range 2.5 to 6.0 bar. Maximum operating temperature 80°C.
In-line manually adjustable pressure reducing valves with a DZR brass body, piston and stem. Product is supplied with guages Maximum inlet pressure 20.0 bar. Outlet pressure range 1.0 to 6.0 bar. Maximum operating temperature 100°C.
Range of in-line adjustable (between 2.8 and 3.2 bar) pressure reducing valves with chrome plated DZR brass bodies and NBR ‘O’ rings. The valves incorporate test ports on the outlet side of the valve and a stainless-steel strainer. Maximum supply pressure 16.0 bar. Maximum operating temperature 85°C.
Range of in-line adjustable pressure reducing valves, with bronze bodies and NBR gaskets. The products are supplied with an optional pressure gauge. Maximum inlet supply pressure 20.0 bar. Outlet pressure in the range of 1.0 bar to 4.0 bar. Maximum operating temperature 85°C.
Range of adjustable in-line pressure reducing valves with bronze bodies and manually operated pressure reducing mechanism. Outlet pressure adjustable between 1.5 to 6.0 bar. Maximum supply pressure 16.0 bar. Maximum operating temperature 60°C.
Range of adjustable, in-line pressure reducing valves incorporating gunmetal bodies and EPDM diaphragm & ‘O’-rings. Maximum inlet supply pressure 16.0 bar. Maximum outlet pressure 1.5 to 5.5 bar. Cold water use only.
Range of in-line, manually adjustable pressure reducing valves with DZR brass bodies and EPDM rubber seat washers & ‘O’-rings. Outlet pressure range: 1.0 - 6.0 bar. Maximum working pressure 16.0 bar. Maximum operating temperature 80°C.
Range of in-line adjustable pressure reducing valves with Nickel plated DZR brass bodies and EPDM gaskets. Maximum inlet supply pressure 16.0 bar. Outlet pressure in the range of 0.5 bar to 6.0 bar. Maximum operating temperature 80°C.
Range of in-line adjustable pressure reducing valves, with DZR brass bodies and EPDM seat washers & ‘o’ rings and stainless-steel filters. Various models supplied with pressure gauge (please see model list). Maximum inlet supply pressure 16.0 bar. Outlet pressure range: 0.8-6.0 bar. Maximum operating temperature 80°C.
Range of in-line adjustable pressure reducing valves, with DZR brass bodies and EPDM seat washers & ‘o’ rings and stainless-steel filters. Maximum inlet supply pressure 16.0 bar. Outlet pressure range: 0.8-6.0 bar. Maximum operating temperature 80°C.
Range of combined thermal balancing and pressure reducing valves with gun metal bodies, stainless-steel strainer, pressure gauge and temperature gauge. Maximum inlet supply pressure 16.0 bar. Outlet pressure range of 1.5 bar – 5.5 bar. Maximum operating temperature 85°C.
Range of in-line adjustable pressure reducing valves with Nickel plated DZR brass bodies and EPDM gaskets. Maximum inlet supply pressure 16.0 bar. Outlet pressure in the range of 0.5 bar to 6.0 bar. Maximum operating temperature 80°C.
Range of in-line adjustable pressure reducing valves, with DZR brass bodies and EPDM seat washers & ‘o’ rings and stainless-steel filters. Various models supplied with pressure gauge (please see model list). Maximum inlet supply pressure 16.0 bar. Outlet pressure range: 0.8-6.0 bar. Maximum operating temperature 80°C.
Range of in-line, manually adjustable pressure reducing valves with blue epoxy coated ductile iron bodies and EPDM gaskets and ‘O’-rings (all models) and an EPDM diaphragm (VRCD-M models only). VRCD models: Outlet pressure range: 1.5 - 6.0 bar or 5.0 to 12.0 bar. VRCD-M models: Outlet pressure range: 1.5 - 6.0 bar. Maximum supply pressure 16.0 bar. Cold water use only.
Range of in-line adjustable pressure reducing valves, with DZR brass bodies and EPDM seat washers & ‘o’ rings and stainless-steel filters. Various models supplied with pressure gauge (please see model list). Maximum inlet supply pressure 16.0 bar. Outlet pressure range: 0.8-6.0 bar. Maximum operating temperature 80°C.
Range of in-line, manually adjustable pressure reducing valves with blue epoxy coated ductile iron bodies and EPDM gaskets and ‘O’-rings (all models) and an EPDM diaphragm (VRCD-M models only). VRCD models: Outlet pressure range: 1.5 - 6.0 bar or 5.0 to 12.0 bar. VRCD-M models: Outlet pressure range: 1.5 - 6.0 bar. Maximum supply pressure 16.0 bar. Cold water use only.
Range of adjustable, in-line pressure reducing valves with DZR brass bodies. Adjsutable between 1.0 bar and 5.5 bar outlet pressure. Compression models are for use with copper pipe to EN1057. Maximum inlet supply pressure 16.0 bar. Maximum operating temperature 80°C.
Range of pressure reducing valves with DZR brass bodies (CW602N or CW511L), EPDM ‘O’-rings and a stainless steel strainer. Available with a variety of end connections (see model). Models with compression, pressfit and pushfit connections are for use with copper pipe. Maximum inlet supply pressure 16.0 bar. Maximum outlet pressure between 1.5 bar and 6.0 bar. Maximum operating temperature 80°C.
Range of manually adjustable pressure reducing valves with DZR brass bodies and EPDM ‘O’- rings. Maximum inlet pressure 15.0 bar, adjustable outlet range of 2.2 to 4 bar. Maximum operating temperature 60°C.
Range of in-line adjustable (between 2.8 and 3.2 bar) pressure reducing valves with chrome plated DZR brass bodies and NBR ‘O’ rings. The valves incorporate test ports on the outlet side of the valve and a stainless-steel strainer. Maximum supply pressure 16.0 bar. Maximum operating temperature 85°C.
Range of pressure reducing valves (factory pre-set at 3.0 bar) but adjustable between 3.0-3.3 bar, with chromium plated DZR brass bodies incorporating an integral stainless-steel strainer. The products can be supplied with a gauge connection. Maximum inlet supply pressure 10.0 bar. Maximum operating temperature 85°C
‘Europress’ range of in-line pressure reducing valves, with DZR brass bodies and EPDM ‘O’-rings and washer. The outlet pressure is adjustable between 1.0 - 5.5 bar. Operating parameters: 2430012 EUROPRESS model: Maximum inlet supply pressure 25.0 bar. Maximum operating temperature 80°C. 2430034 EUROPRESS & 2430100 EUROPRESS models: Maximum inlet supply pressure 16.0 bar. Maximum operating temperature 99°C.
Range of adjustable pressure reducing valves incorporating a plastic body and EPDM ‘O’-rings and stainless steel strainers. Outlet pressure 1.2 - 8.0 bar. Maximum inlet supply pressure 16.0 bar. Maximum operating temperature 85°C.
Manually adjustable pressure reducing valve, which incorporates a DZR brass body and an in-line double check valve assembly on the inlet (verified by test as suitable for backflow protection against Fluid Category 3). The outlet incorporates a shut-off valve. Maximum supply pressure 16.0 bar. Maximum outlet pressure between 1.5 bar and 6.0 bar. Maximum operating temperature 40°C.
Range of 5 way inlet control group assembly incorporating a DZR brass body incorporating a pressure reducing valve, with an adjustable outlet pressure range of either 3.0 bar, 3.5 bar, or 6.0 bar and a safety relief valve set at either 6.0 bar or 8.0bar (depending on model). The product incorporates an inline single check valve cartridge after the balanced cold take off, verified by test (suitable for backflow protection against Fluid Category 2). Maximum supply pressure 10.0 bar. Maximum operating temperature 85°C
Range of adjustable pressure reducing (pilot) valves with stainless steel bodies, EPDM diaphragm and ‘O’-ring. Outlet pressures are adjustable between 1.0 to 5.0 bar (ACV100C model), 1.5 to 10.0 bar (ACV100E model) and 2.0 to 15.0 bar (ACV100F model). Maximum supply pressure 16.0 bar. Cold water use only.
In-line adjustable pressure reducing valve assembly with a DZR brass body. The assembly also incorporates a stainless strainer (part of the pressure reducing valve), a spherical valve with a brass ball on the inlet, a single check valve cartridge, verified by test (suitable for backflow protection against Fluid Category 2) on the outlet, and a drain port with a brass plug. The product also includes a port with a plastic plug to accommodate a gauge/sensor (not supplied). Adjustable outlet pressure range between 1.0 and 6.0 bar. Maximum supply pressure 10.0 bar. Maximum operating temperature 85°C.
Monobloc assembly with a DZR brass body comprising of a stainless steel strainer, adjustable pressure reducing valve and two approved check valve cartridges, however, the complete product has not been fully tested to demonstrate it provides backflow protection. The product is supplied with two loose pressure gauges. For use with copper pipe (manufactured to EN1057). The product is also supplied with Maximum inlet supply pressure 6.0 bar. Maximum outlet pressure 0.8 bar to 6.0 bar. Maximum operating temperature 35°C.
Range of adjustable, bronze in-line pressure reducing valves. Model 753A ½”, ¾” & 1” sizes and model 754A 1¼” size have inspection ports on the outlet only. Model 754A 2” and 4” sizes have inspection ports on the inlet and outlet. The valves incorporate a stainless-steel strainer. Maximum inlet supply pressure 20.0 bar. Maximum outlet pressure 1.0 bar to 4.0 bar. Maximum operating temperature 70°C.
Range of adjustable, bronze in-line pressure reducing valves. The valves incorporate a stainless-steel strainer. Maximum inlet supply pressure 20.0 bar. Maximum outlet pressure 1.0 bar to 4.0 bar. Maximum operating temperature 70°C.
Range of adjustable, bronze in-line pressure reducing valves. The valves incorporate a stainless-steel strainer. Maximum inlet supply pressure 20.0 bar. Maximum outlet pressure 1.0 bar to 4.0 bar. Maximum operating temperature 70°C.
Range of pressure reducing valves with DZR brass bodies. The capillary union and compression models are for use with copper pipe (manufactured to BSEN 1057). The inlets incorporate a stainless strainer. Maximum supply pressure 21.0-25.0 bar - outlet adjustment range: 2.5 bar min. outlet pressure, 6.0 bar maximum outlet pressure. Maximum supply pressure 16.0-20.0 bar - outlet adjustment range: 2.0 bar min. outlet pressure, 6.0 bar maximum outlet pressure. Maximum supply pressure 11.0-15.0 bar - outlet adjustment range: 1.5 bar min. outlet pressure, 6.0 bar maximum outlet pressure. During January 2022 these products were for cold water use only. Between February 2022 and January 2027 the products are for use with water up to 65°C.
‘Easiset 320 series’ adjustable (in-line) pressure reducing valves with DZR brass bodies. Compression and pushfit models are for use with copper pipe (manufactured to BS EN 1057:2006+A1:2010). From March 2022 the pushfit models can also be used with PB pipe (manufactured to BS EN 7291-2:2010) and PEX pipe (manufactured to BS EN 7291-3:2010). Maximum inlet supply pressure: 16.0 bar all models with copper pipe. From March 2022: SBPRED320001 & SBPRED320005 models: 12.0 bar with PEX & PB pipe. SBPRED320050 & SBPRED320055 models: 6.0 bar with PEX & PB pipe. Maximum outlet pressure 1.5 bar to 5.5 bar. Maximum operating temperature: COLD WATER EASISET 320 SERIES: 45°C with copper pipe, and from March 2022: cold water use only with PEX & PB pipe. HOT WATER EASISET 320 SERIES: 80°C with copper pipe, and from March 2022: 80°C with PEX & PB pipe.
Range of adjustable, bronze in-line pressure reducing valves. Maximum inlet supply pressure 20.0 bar. Maximum outlet pressure 1.0 bar to 4.0 bar. Maximum operating temperature 70°C.
Range of in-line manually adjustable pressure reducing valves with blue epoxy coated cast iron bodies, stainless steel cartridges, EPDM diaphragm and seals. Adjustable outlet pressures in the range of: D15S-50A - DS15S-100A = 1.5 to 7.5 bar. D15S-150A - DS15S-200A = 1.5 to 8.0 bar. Models added April 2023: D15SN-50A - DS15SN-100A = 0.5 to 2.0 bar. Maximum supply pressure 16.0 bar. D15S-150A and D15S-200A models: Cold water use only. All other models have non-metallic material suitable for up to 60°C.
Range of pressure reducing valves with DZR brass bodies, integral stainless steel strainer, and EPDM ‘O’-rings and membrane. The oulet pressure is adjustable between 1.5 bar and 6.0 bar. Maximum inlet supply pressure 25.0 bar. Maximum operating temperature 70°C.
Range of in-line manually adjustable pressure reducing valves with blue epoxy coated cast iron bodies, EPDM rubber diaphragm and seals. Maximum supply pressure: A suffix model (added April 2023): 16.0 bar. B suffix models: 25.0 bar. Adjustable outlet pressure 3.0 to 10.0 Bar.
Non-metallic materials and components comply with BS6920 at 60°C
Range of pressure reducing valves with DZR brass bodies adjustable between 1.0 and 6.0 bar. The valves incorporate a stainless steel strainer. Maximum supply pressure 25.0 bar or 16.0 bar (see model). Maximum operating temperature 80°C.
Range of pressure reducing valves with DZR brass bodies, internal stainless steel filter, EPDM ‘O’-rings and diaphragm. Adjustable outlet pressures between 1.0 and 6.0 bar or 1.0 and 12.0 bar (see model). Maximum inlet supply pressure 25.0 bar. Maximum operating temperature 80°C.
Range of adjustable in-line pressure reducing valves, the inlets incorporate a stainless-steel strainer. Models TS-504-505 & TS-506-508 have brushed chrome, DZR brass bodies. Model TS-501-503 has a DZR brass body. Maximum supply pressure 8.0 bar. Maximum outlet pressure 1.0 bar to 6.0 bar. Maximum operating temperature 85°C.
Range of pressure reducing valves with nickel plated DZR brass bodies, internal stainless steel filter, EPDM ‘O’-rings and diaphragm. Adjustable outlet pressures between 0.5 and 6.0 bar. The products are supplied with an optional pressure gauge. Maximum inlet supply pressure 16.0 bar. Maximum operating temperature 80°C.
Range of pressure reducing valves with DZR brass bodies, internal stainless steel filter, EPDM ‘O’-rings and diaphragm. Adjustable outlet pressures between 1.0 and 6.0 bar Maximum inlet supply pressure 25.0 bar. Maximum operating temperature 80°C.
Range of pressure reducing valves with DZR brass bodies, internal stainless steel filter, EPDM ‘O’-rings and diaphragm. Adjustable outlet pressures between 1.0 and 6.0 bar. Maximum inlet supply pressure 25.0 bar. Maximum operating temperature 80°C.
Range of pressure reducing valves with DZR brass bodies, internal stainless steel filter, EPDM ‘O’-rings and diaphragm. Adjustable outlet pressures between 1.0 and 6.0 bar Maximum inlet supply pressure 25.0 bar. Maximum operating temperature 80°C.
Range of pressure reducing valves with DZR brass bodies adjustable between 1.0 and 6.0 bar. The valves incorporate a stainless steel strainer. Maximum supply pressure 25.0 bar or 16.0 bar (see model). Maximum operating temperature 80°C.
Range of pressure reducing valves with DZR brass bodies, internal stainless steel filter, EPDM ‘O’-rings and diaphragm. Adjustable outlet pressures between 1.0 and 6.0 bar Maximum inlet supply pressure 25.0 bar. Maximum operating temperature 80°C.
Range of in line adjustable pressure reducing valves with (brushed chrome plated) DZR brass bodies for use with copper pipe manufactured to EN1057. The valves incorporate stainless steel strainers and are supplied with pressure gauges. Maximum supply pressure 16.0 bar. Outlet pressures are adjustable between 1.0 and 6.0 bar. Maximum operating temperature 85°C
Range of in line adjustable pressure reducing valves with (brushed chrome plated) DZR brass bodies for use with copper pipe manufactured to EN1057. The valves incorporate stainless steel strainers and are supplied with pressure gauges. Maximum supply pressure 16.0 bar. Outlet pressures are adjustable between 1.0 and 6.0 bar. Maximum operating temperature 85°C
Range of adjustable, bronze in-line pressure reducing valves. Model sizes ½”, ¾” , 1” & 1¼” size have inspection ports on the outlet only. Model sizes 2” and 4” sizes have inspection ports on the inlet and outlet. The valves incorporate a stainless-steel strainer. Maximum inlet supply pressure 20.0 bar. Maximum outlet pressure 1.0 bar to 4.0 bar. Maximum operating temperature 70°C.
Range of in-line adjustable pressure reducing valves with DZR brass bodies and EPDM ‘O’-rings and gaskets, for use with copper pipe (manufactured to EN1057). The valves incorporate test ports at the outlet. The product is supplied with an optional pressure gauge. The outlet pressure is adjustable between 1.0 bar and 6.0 bar. Maximum supply pressure 16.0 bar. Maximum operating temperature 80°C.
Range of inline manually adjustable pressure reducing valves with DZR brass or bronze bodies (see model), EPDM diaphragm, seat washers and ‘O’-rings. Adjustable outlet pressures between 1.0 and 7.0 bar. Maximum inlet supply pressure Art.229.0XX: 40.0 bar, Art.229.1XX: 25.0 bar. Maximum operating temperature 80°C.
Range of inline manually adjustable pressure reducing valves with DZR brass or bronze bodies (see model), EPDM diaphragm, seat washers and ‘O’-rings. Adjustable outlet pressures between 1.0 and 7.0 bar. Maximum inlet supply pressure 25.0 bar. Maximum operating temperature 80°C.
Range of pressure reducing valves with DZR brass, gunmetal or stainless-steel bodies. Maximum inlet pressure for HP and SP Models = 25.0 bar. Maximum inlet pressure for LP Models = 6.0 bar. Maximum operating temperature 60°C
Range of combination valves with a DZR brass body incorporating a pressure reducing valve, a ball valve, pressure gauge and water meter port. The outlet incorporates two single check valve cartridges, verified by test suitable for backflow to fluid category 3. Maximum working pressure 16 Bar Outlet pressure in the range 6.0 to 1.5 bar. Maximum operating temperature 80°C
Range of in-line adjustable pressure reducing valves with DZR brass bodies and NBR ‘O’-rings. The valve incorporates a test port. The outlet pressures range from 1.5 bar to 6.0 bar. Maximum supply pressure 25.0 bar. Cold water use only.
Range of adjustable, bronze in-line pressure reducing valves. Sizes ½”, ¾” 1”& 1¼” have inspection ports on the outlet only and Sizes 2” & 4” have inspection ports on the inlet and outlet. The valves incorporate a stainless-steel strainer. Maximum inlet supply pressure 20.0 bar. Maximum outlet pressure 1.0 bar to 4.0 bar. Maximum operating temperature 70°C.
Range of pressure reducing valves with DZR brass, gunmetal or stainless-steel bodies. Maximum inlet pressure for HP and SP Models = 25.0 bar. Maximum inlet pressure for LP Models = 6.0 bar. Maximum operating temperature 60°C
Range of adjustable, bronze in-line pressure reducing valves. Sizes ½”, ¾” & 1” sizes and sizes 1¼” size have inspection ports on the outlet only. Sizes 2” and 4” sizes have inspection ports on the inlet and outlet. The valves incorporate a stainless-steel strainer. Maximum inlet supply pressure 20.0 bar. Maximum outlet pressure 1.0 bar to 4.0 bar. Maximum operating temperature 70°C.
Range of pressure reducing valves with gunmetal or stainless steel bodies. Max pressure 16 or 25 bar (See models for details).
Non-metallic materials and components comply with BS6920 at 60°C
Range of pressure reducing valves incorporating chromium plated DZR brass bodies. Some models are supplied with a pressure gauge. Maximum operating temperature 85°C. Please refer to model for maximum inlet pressures and outlet pressures.
Non-metallic materials and components comply with BS6920 at 85°C
Range of in-line, pressure reducing valves with DZR brass bodies and stainless-steel strainers. Maximum inlet supply pressure 16.0 bar. Outlet supply pressure is adjustable within the range of 1.5 bar to 6.0 bar. Maximum operating temperature 45°C or 65°C, please refer to model.
Range of in-line adjustable pressure reducing valves, with DZR brass bodies and EPDM membrane. Maximum inlet supply pressure 16.0 bar. Outlet pressure 1.5 bar to 6.0 bar.
Non-metallic materials and components comply with BS6920 at 80°C
Range of adjustable, bronze in-line pressure reducing valves. Sizes ½”, ¾” & 1” sizes and 1¼” size have inspection ports on the outlet only. Sizes 2” and 4” sizes have inspection ports on the inlet and outlet. The valves incorporate a stainless-steel strainer. Maximum inlet supply pressure 20.0 bar. Maximum outlet pressure 1.0 bar to 4.0 bar. Maximum operating temperature 70°C.
`535` range of adjustable, in-line pressure reducing valves with DZR brass bodies, incorporating a spring loaded EPDM diaphragm and a gauge port. The 535022 compression model is for use with copper pipe (manufactured to EN1057). The product incorporates an intergal stainless steel strainer. Models can be supplied with or without a pressure gauge (see model), which inserts in the test port location. The outlet pressure range is adjustable between 1.0 and 6.0 bar. Maximum inlet supply pressure 16.0 bar.
Non-metallic materials and components comply with BS6920 at 40°C
Range of pressure reducing valves (factory pre-set at 3.0 bar) but adjustable between 3.0-3.3 bar, with chromium plated DZR brass bodies incorporating an integral stainless-steel strainer. The products supplied with a gauge connection. Maximum inlet supply pressure 10.0 bar. Maximum operating temperature 85°C
Range of adjustable, bronze in-line pressure reducing valves. Model 970/0502L ½”, ¾” & 1” sizes and model 970/0502M 1¼” size have inspection ports on the outlet only. Model 970/0502M 2” and 4” sizes have inspection ports on the inlet and outlet. The valves incorporate a stainless-steel strainer. Maximum inlet supply pressure 20.0 bar. Maximum outlet pressure 1.0 bar to 4.0 bar. Maximum operating temperature 70°C.
Range of in-line, adjustable pressure reducing valves, with a DZR brass body. The product incorporates two approved check valve cartridges, verified by test (suitable for backflow protection against Fluid Category 3) and a shut off valve. Maximum working pressure 16 Bar Maximum outlet pressure between 1.5 bar and 6.0 bar.
Non-metallic materials and components comply with BS6920 at 40°C
Range of pressure reducing valves with DZR brass bodies. The valves are adjustable in the range of 1.5 bar - 6.0 bar. Stainless steel strainer Maximum working pressure 16.0 bar. Maximum operating temperature 80°C.
Range of adjustable, in-line pressure reducing valves with gunmetal, bismuth red brass or stainless-steel bodies. The inlets incorporate a stainless-steel strainer. Models 682/6820 (DN100) & 482 (DN100) have a maximum inlet supply pressure of 16.0 bar. All other models have a maximum inlet supply pressure of 25.0 bar. Maximum outlet pressure in the range of 1.0-8.0 bar.
Non-metallic materials and components comply with BS6920 at 85°C
Range of adjustable, in-line pressure reducing valves with gunmetal, bismuth red brass or stainless-steel bodies. The inlets incorporate a stainless-steel strainer. Models ART 682/ART 6820 (DN100) & ART 482 (DN100) have a maximum inlet supply pressure of 16.0 bar. All other models have a maximum inlet supply pressure of 25.0 bar. Maximum outlet pressure in the range of 1.0-8.0 bar.
Non-metallic materials and components comply with BS6920 at 85°C
Range of adjustable, in-line pressure reducing valves with gunmetal, bismuth red brass or stainless-steel bodies. The inlets incorporate a stainless-steel strainer. Maximum inlet supply pressure of 25.0 bar. Maximum outlet pressure in the range of 1.0-8.0 bar.
Non-metallic materials and components comply with BS6920 at 85°C
Range of adjustable, in-line pressure reducing valves with gunmetal, bismuth red brass or stainless-steel bodies. The inlets incorporate a stainless-steel strainer. Models have a maximum inlet supply pressure of 25.0 bar. Maximum outlet pressure in the range of 1.0-8.0 bar.
Non-metallic materials and components comply with BS6920 at 85°C
Range of adjustable, in-line pressure reducing valves with gunmetal, bismuth red brass or stainless-steel bodies. The inlets incorporate a stainless-steel strainer. Models have a maximum inlet supply pressure of 25.0 bar. Maximum outlet pressure in the range of 1.0-8.0 bar.
Non-metallic materials and components comply with BS6920 at 85°C
Range of adjustable, in-line pressure reducing valves with gunmetal, bismuth red brass or stainless-steel bodies. The inlets incorporate a stainless-steel strainer. Models have a maximum inlet supply pressure of 25.0 bar. Maximum outlet pressure in the range of 1.0-8.0 bar.
Non-metallic materials and components comply with BS6920 at 85°C
Range of adjustable, in-line pressure reducing valves with DZR brass or plated brass bodies, incorporating EPDM diaphragm, ‘O’ rings and a stainless-steel strainer. Models can be supplied with or without gauge port and some models supplied with gauge port and gauge. Maximum inlet supply pressure 16.0 bar. Maximum outlet pressure 1.0 to 5.5 bar Maximum operating temperature 80°C
Range of pressure reducing valves with DZR brass bodies. Maximum inlet supply pressure 25.0 bar. Outlet supply pressure is adjustable within the range of 1.5 bar to 6.0 bar. Maximum operating temperature 70°C.
Inlet control group consisting of an in-line pressure reducing valve (adjustable pressure - see model) and a pre-set expansion relief valve (pre-set pressure - see model) housed in a DZR brass body with an EPDM rubber diaphragm. The product incorporates a check valve cartridge, verified by test (suitable for backflow protection against Fluid Category 2). Compression connection to be used with copper pipe EN1057 only. Maximum supply pressure 10.0 bar. Maximum operating temperature 40°C.
Range of pressure reducing valve assemblies with DZR brass bodies incorporating a spherical valve, a pressure gauge and 2 inline check valve cartridges, verified by test (suitable for backflow protection against Fluid Category 3). Models TVAP250001 & TVAP250005 also incorporate a water meter port. Maximum supply pressure 16 bar. Outlet pressure setting is adjustable in the range 1.5 to 6 bar.
Non-metallic materials and components comply with BS6920 at 65°C
