Section Code 0470 : Single hole, single outlet, swivel. Taps used in high risk installations, such as kitchen sinks, are considered to be a fluid category 5 risk. Backflow protection is usually provided in the form of an AUK3 tap gap. Where an AUK3 tap gap cannot be maintained, for example where the tap gap is compromised as a result of:- • the tap being lowered in any way; • adjustment to the spout which reduces the distance between the tap outlet and spillover level of the sink; • or the operation of a pull out hose attachment; alternative fluid category 5 backflow protection is required.

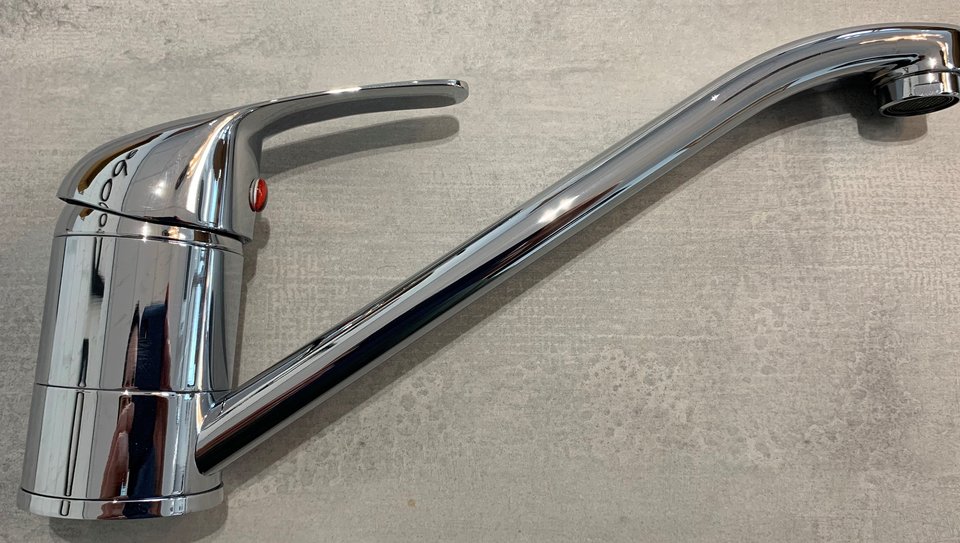

Back To Directory SectionsSingle hole, single outlet (swivel) combination tap assembly (chromium plated brass), incorporating quarter turn ceramic disc headworks and single lever operating members. The spout outlet incorporates a plastic flow straightener. Maximum working pressure 10.0 bar. Maximum operating temperature 65°C.
Range of single hole, single outlet (swivel) combination tap assemblies (chromium plated brass), incorporating a ceramic cartridge headwork with a single lever operating member. The spout outlet incorporates a plastic flow straightener. Maximum working pressure 5.0 bar. Maximum operating temperature 70°C
Range of single hole single outlet (swivel) combination tap assemblies (chromium plated brass). Incorporating a ceramic cartridge headwork with a single lever operating members. The outlets incorporate a plastic flow straightener (M96012AA) or plastic aerator (M96012C). Maximum working pressure 5.0 bar. Maximum operating temperature 70°C
Range of single hole single outlet (swivel) combination tap assemblies (chromium plated brass), incorporating quarter turn ceramic disc headworks and either single lever,or cross top operating members. The spout outlet incorporates a plastic flow straightener. Maximum working pressure 10.0 bar. Maximum operating temperature 60°C.

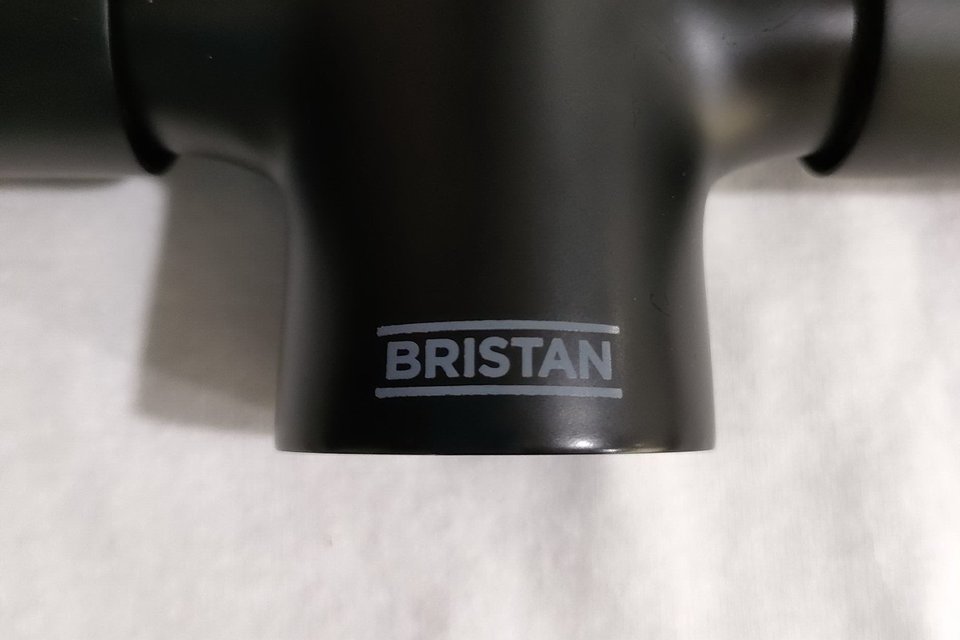

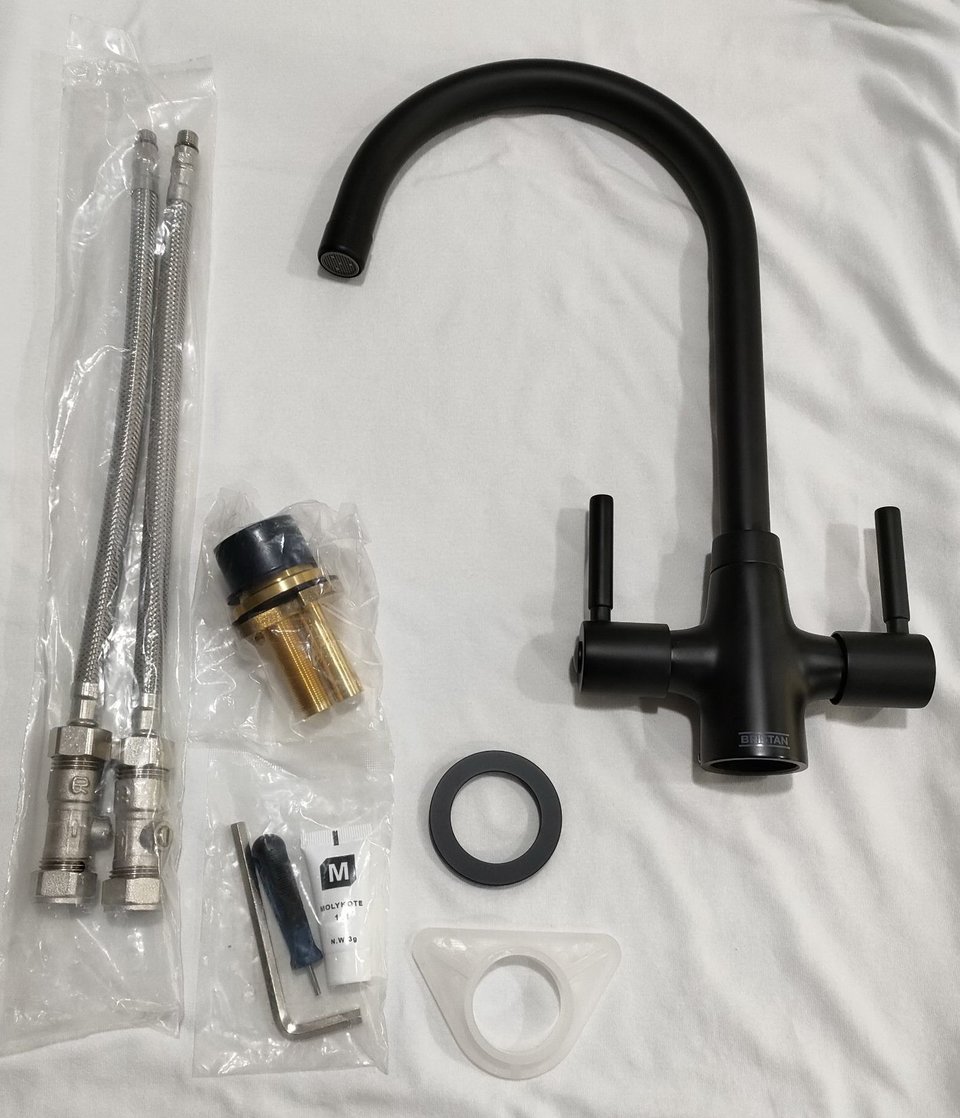

Range of single hole, single outlet (swivel) combination tap assemblies (chromium plated or matt black finish). The SAVV104, INS104, IND104, ETH104, ETH104BK and CDN104 models incorporate a ceramic cartridge headwork with a single lever operating member. The BTN104, NTN104 and NEL104 models incorporate quarter turn ceramic disc headworks with single lever operating members. The spout outlet incorporates a plastic aerator, except for the BTN104 and SAVV104 models which have a plastic flow regulator. Maximum working pressure 6.0 bar. Maximum operating temperature 60°C.
Range of single hole, single outlet (swivel) combination tap assemblies (various finishes) incorporating ceramic cartridge headwork and a single lever type operating member. Spout outlets incorporate a plastic aerator. Inlets incorporate stainless steel strainers. Maximum working pressure 5.0 bar. Maximum operating temperature 60°C
Single hole, single outlet (swivel) combination tap assemblies (chromium plated brass), incorporating quarter turn ceramic disc headworks with single lever operating members. The cold inlet incorporates an approved check valve cartridge however, the complete unit has not been tested to demonstrate it provides adequate backflow protection. The spout outlet incorporates a plastic aerator. Maximum working pressure 5.0 bar. Maximum operating temperature 60°C.
Range of single hole, single outlet (swivel) combination tap assembly (chromium plated brass), incorporating quarter turn ceramic disc headworks with single lever operating members. The spout outlet incorporates a plastic aerator. The cold inlet incorporates an approved check valve cartridge however, the complete unit has not been tested to demonstrate it provides adequate backflow protection. Maximum working pressure 5.0 bar. Maximum operating temperature 60°C.
Range of single hole, single outlet (swivel) combination tap assemblies (chromium plated brass), incorporating ceramic cartridge or ceramic disc headworks with single lever operating members. The spout outlet incorporates a plastic flow straightener. Maximum working pressure 6.0 bar. Maximum operating temperature 60°C
Range of deck mounted single hole, single outlet (swivel) combination tap assemblies in chromium plated brass, incorporating a non-rising spindle headworks with dome type operating members. The spout outlets incorporate plastic flow straighteners. Maximum working pressure 5.0 bar. Maximum operating temperature 60°C.
