Section Code 2260 : Spherical, metal.
Back To Directory SectionsRange of press fit spherical valves with brass and chrome plated brass bodies. For use with copper pipe to BS EN 1057. Maximum working pressure 16.0 Bar Maximum operating temperature 85 °C.
Range of 3-way brass spherical valves incorporating a chrome plated brass ball and PTFE seats. Maximum working pressure: See models Maximum operating temperature 60.0°C
Range of in line spherical valves incorporating chrome plated brass bodies, chrome plated brass ball. Model 825212 & 803815 incorporate a single lever operating member, models 825015 and 8250152 have no operating members. Maximum working pressure 5.0 bar. Maximum operating temperature 60°C.
Range of in-line lever operated spherical (SB2415) or screwdriver operated servicing (SB1915 & SB1922) valves with chromium plated brass bodies and balls, EPDM seals and ‘SharkBite’ push fit end connections. For use with PB pipe manufactured to EN7291-2:2010, PEX Pipe Manufactured to EN 7291-3:2010 and copper pipe manufactured to EN1057. Maximum working pressure: 12.5 Bar at 20°C (PEX & PB Pipe) 6.0 Bar at 95°C (PEX & PB Pipe) 20.0 Bar at 20°C (Copper Pipe) 16.0 Bar at 95°C (Copper Pipe)
Range of spherical valves incorporating brass bodies and balls (nickel plated), EPDM rubber ‘O’-rings, PTFE seats and red or blue coloured lever type operating members. Maximum working pressure; 10 Bar Maximum operating temperature; 65°c
Range of spherical valves incorporating brass bodies and ball. Maximum working pressure see models. Maximum operating temperature 100°C.

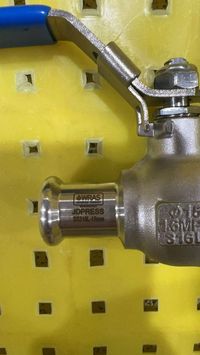

Range of press fit spherical valves with brass bodies, stainless steel balls and PTFE seats. The valve are available with lever, extended lever, lockshield lever and butterfly handle operating members. For use with copper pipe (manufactured to EN1057) and stainless-steel pipe (manufactured to EN10312). Jointing is achieved via a crimping tool using a ‘M’ or ‘V’ profile (model dependent). Maximum working pressure 25.0 bar. Maximum operating temperature 85°C.
Screwdriver operated angled spherical valve with a brass body and ball, PTFE seats and EPDM ‘O’-rings. Compression connection is to be used with copper pipe EN1057. Maximum working pressure 12.0 bar. Maximum operating temperature 85°C.
Motorised spherical valve incorporating nickel plated brass body, chrome plated brass ball and EPDM ‘O’-rings. Maximum working pressure 25.0 bar. Maximum operating temperature 85°C.
Range of lever operated spherical valves with a nickel plated brass body, chromium plated brass ball and PTFE seats. Compression ends are for use with copper pipes (manufactured to EN1057). Maximum working pressure 16.0 bar. Maximum operating temperature 85°C.
Spherical ball valve (lever operated) with brass body, NBR O-rings and incorporates single check valve cartridge, verified by test (suitable for backflow protection against Fluid Category 2). Compression connection is for use with copper pipe (manufactured to BS EN 1057). Maximum working pressure 16.0 bar. Maximum operating temperature 65°C.
Spherical valve incorporating a DZR brass body with a lever operating member, chromium plated DZR brass ball and PTFE seat. Maximum working pressure 16Bar. Maximum operating temperature 100°C.

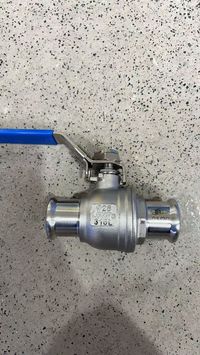

Range of single lever ball valves with stainless steel bodies, ball, EPDM O-rings and PTFE gaskets. The press fit connection is to be used with stainless steel pipe manufactured to EN 10312. Maximum working pressure 16 bar. Maximum operating temperature 85°C.
Range of spherical valves incorporating either brass or nickel plated brass bodies with chrome plated brass ball and operated via lever, butterfly type handle or screwdriver slot. For use with copper pipe (manufactured to EN1057). Maximum working pressure 16.0 bar. Maximum operating temperature 85°C.
Range of spherical isolation valves incorporating brass bodies (nickel plated), brass ball (chrome plated), brass stem and EPDM ‘O’-rings (screwdriver operated or T-type handle). For use with copper pipe (EN1057). Maximum working pressure 16.0 bar (model HC-60982-15) Maximum working pressure 25.0 bar (model HC-62022-15) Maximum operating temperature 85°C.
Range of motorised spherical valves with a stainless-steel body and a separate control box. Maximum working pressure 10.0 bar. Maximum operating temperature 100°C.
Range of spherical valves incorporating brass bodies, chromium plated brass ball, PTFE seat and lever operating members. Maximum working pressure 25.0 bar. Maximum operating temperature 85°C
Range of spherical valves incorporating bronze bodies, chromium plated brass ball, PTFE seat and lever operating members. Maximum working pressure 25.0 bar. Maximum operating temperature 85°C.
Range of spherical valves with brass bodies incorporating a chrome plated brass ball and a lockable operating mechanism. Maximum working pressure; 16 Bar Maximum operating temperature; 23°c
Range of in-line spherical valves with brass or nickel-plated brass bodies (see model), chrome plated ball, PTFE seats and EPDM O-rings. The products are supplied with either a lever operating member, magnetic lockable operating member, red or yellow butterfly handle or short lever operating member (see model). Compression and pressfit connections are for use with PEX/AL/PEX multilayer pipes manufactured to EN ISO 21003. The pressfit connection jointing is achieved via a crimping tool using a ‘U’ or ‘TH’ profile. Maximum working pressures: 255, 256 and 257 models: 20.0 bar, All other models: 16.0 bar. Maximum operating temperatures: 201, 207 and 209 models: 90°C, All other models: cold water only.
