Water Regulations Approval Scheme Ltd

Valves

Section Code 2260 : Spherical, metal.

WRAS Approval Number: #2012800

“In-Line Thermal Disinfection Unit” comprising of a manual diverter incorporating two spherical valves controlling both the hot and cold flow. Maximum working pressure 10.0 bar. Maximum operating temperature 85°C.

Section:: 2260 Valves
Section Subtitle:: Spherical, metal.
WRAS Approval Number:: 2012800
Note:: Thermal Disinfection Unit has not been verified by test.
Size:: 15mm compression
Marking:: Horne, Model number & flow arrow on body.
Installation Requirements:: R001 R120 R150
Expiry date:: 31/12/2025
Model:: ILTDU

Approval Holder:: Horne Engineering Ltd.

Company Name
Horne Engineering Ltd.
Address
PO Box 7 Rankine Street Johnstone
Postcode
PA5 8BD
Country
Renfrewshire
Phone
+44 (0)1505 321455

View All Listings by this Company
Manufacturer:: Horne Engineering Ltd.

Company Name
Horne Engineering Ltd.
Address
PO Box 7 Rankine Street Johnstone
Postcode
PA5 8BD
Country
Renfrewshire
Phone
+44 (0)1505 321455

View All Listings by this Company

WRAS Approval Number: #2009025

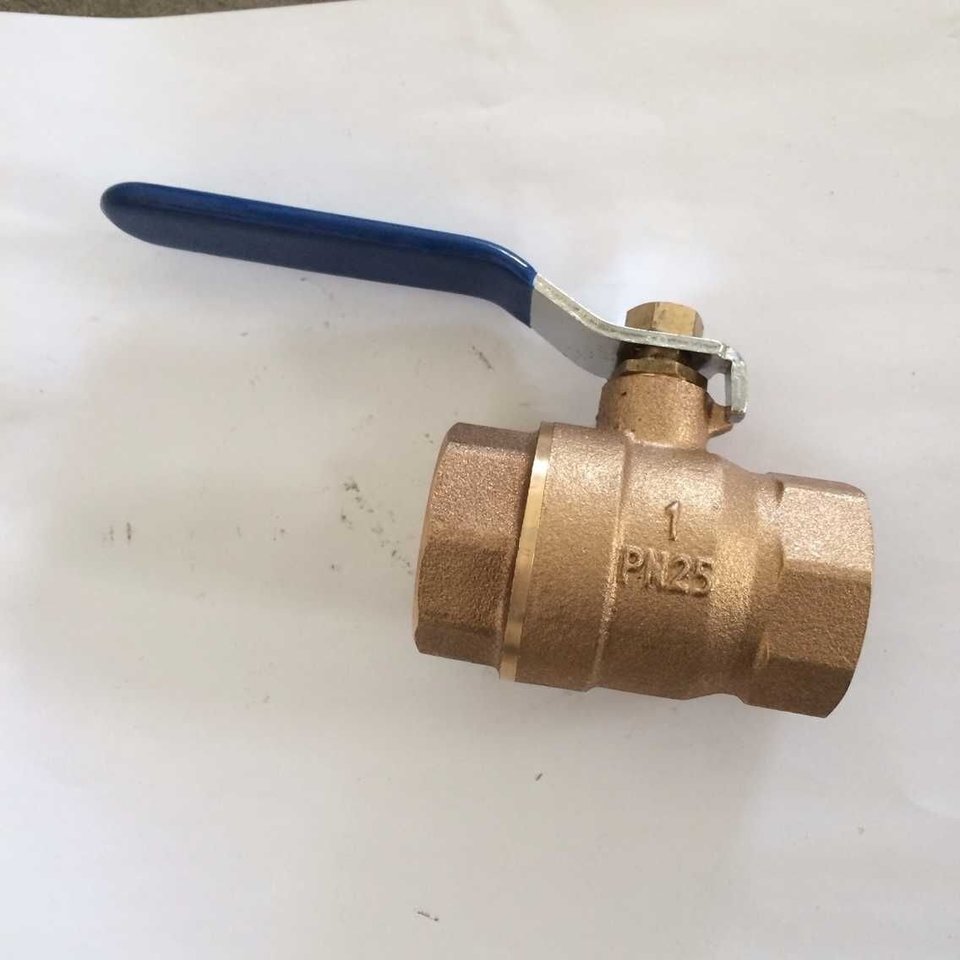

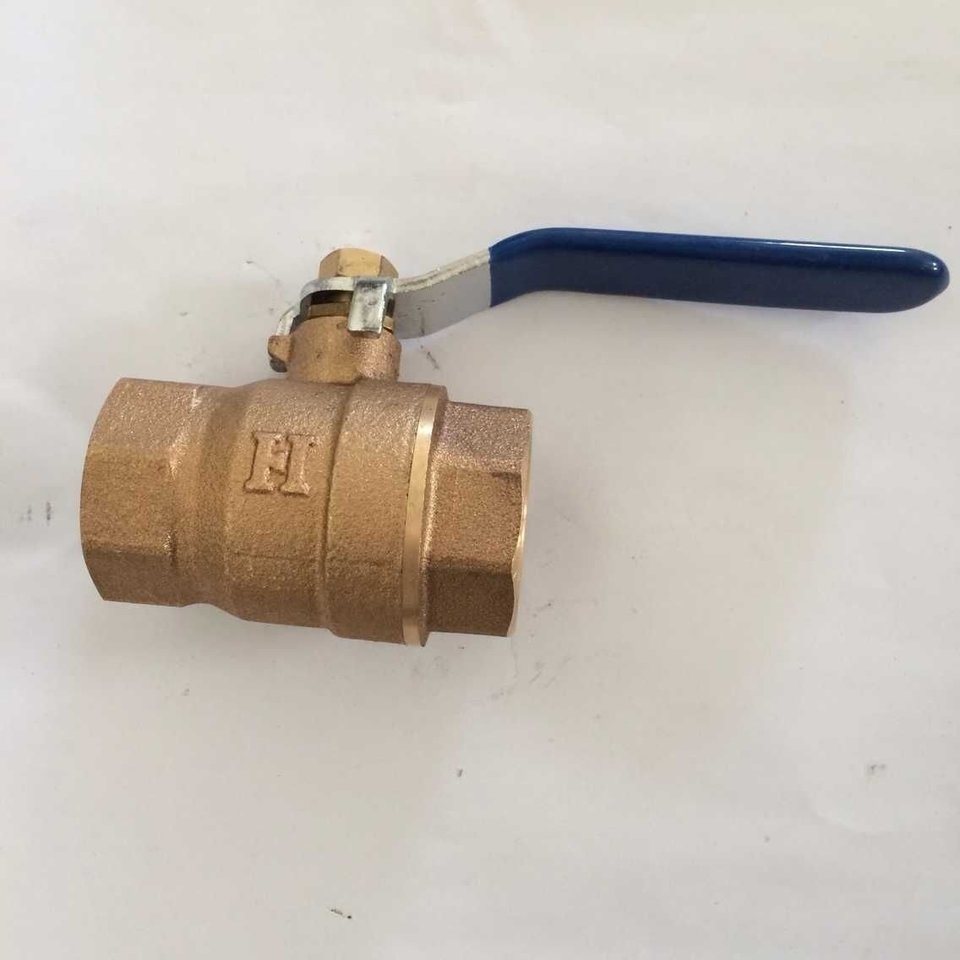

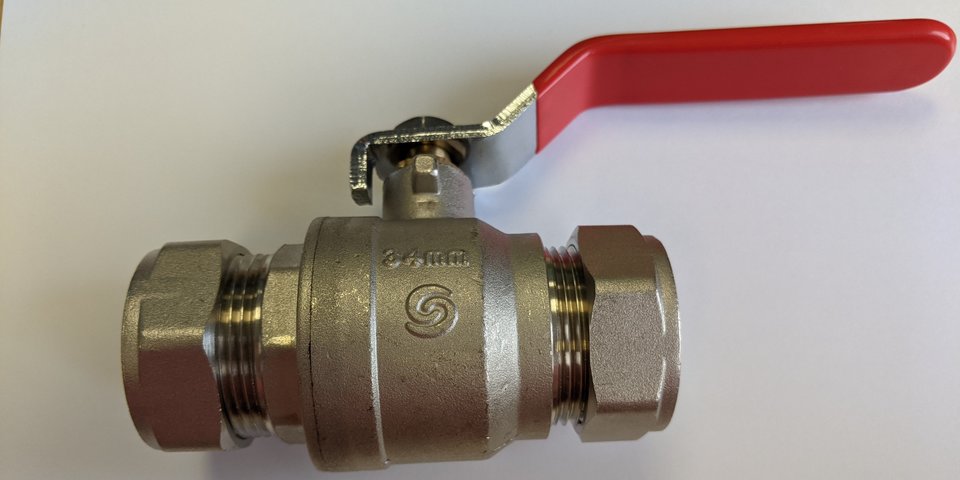

Range of spherical ball valves with single lever or T-handle operating members, brass bodies (nickel plated) and chromium plated brass ball and PTFE washers. Maximum working pressure CP90 models = 40.0 bar. CP89 models = 25.0 bar. Maximum operating temperature 85.0°C

Section:: 2260 Valves
Section Subtitle:: Spherical, metal.
WRAS Approval Number:: 2009025
Size:: ½” - 2” BSPT, BSPP or NPT (F). 15mm – 54mm compression.
Marking:: Manufacturer’s logo (E), MOP5, CE marking, DN, size, PN and date of manufacture (MM/YY) on body. Cottam and Preedy logo and WRAS on operating member.
Installation Requirements:: R001
Expiry date:: 30/09/2025
Model:: Model No: CP90 L/LGW/T/X Product Codes: CP90LB-P015 ½” FxF BSPP Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-P020 ¾” FxF BSPP Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-P025 1” FxF BSPP Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-P032 1 ¼” FxF BSPP Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-P040 1 ½” FxF BSPP Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-P050 2” FxF BSPP Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LR-P015 ½” FxF BSPP Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-P020 ¾” FxF BSPP Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-P025 1” FxF BSPP Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-P032 1 ¼” FxF BSPP Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-P040 1 ½” FxF BSPP Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-P050 2” FxF BSPP Brass Ball Valve c/w Red Sleeved Lever Operator CP90TB-P015 ½” FxF BSPP Brass Ball Valve c/w Blue T-Handle Operator CP90TB-P020 ¾” FxF BSPP Brass Ball Valve c/w Blue T-Handle Operator CP90TB-P025 1” FxF BSPP Brass Ball Valve c/w Blue T-Handle Operator CP90TR-P015 ½” FxF BSPP Brass Ball Valve c/w Red T-Handle Operator CP90TR-P020 ¾” FxF BSPP Brass Ball Valve c/w Red T-Handle Operator CP90TR-P025 1” FxF BSPP Brass Ball Valve c/w Red T-Handle Operator CP90XB-P015 ½” FxF BSPP Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-P020 ¾” FxF BSPP Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-P025 1” FxF BSPP Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-P032 1 ¼” FxF BSPP Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-P040 1 ½” FxF BSPP Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-P050 2” FxF BSPP Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XR-P015 ½” FxF BSPP Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-P020 ¾” FxF BSPP Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-P025 1” FxF BSPP Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-P032 1 ¼” FxF BSPP Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-P040 1 ½” FxF BSPP Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-P050 2” FxF BSPP Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90LGW-P015 ½” FxF BSPP Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-P020 ¾” FxF BSPP Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-P025 1” FxF BSPP Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-P032 1 ¼” FxF BSPP Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-P040 1 ½” FxF BSPP Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-P050 2” FxF BSPP Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LB-T015 ½” FxF BSPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-T020 ¾” FxF BSPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-T025 1” FxF BSPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-T032 1 ¼” FxF BSPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-T040 1 ½” FxF BSPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-T050 2” FxF BSPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LR-T015 ½” FxF BSPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-T020 ¾” FxF BSPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-T025 1” FxF BSPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-T032 1 ¼” FxF BSPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-T040 1 ½” FxF BSPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-T050 2” FxF BSPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90TB-T015 ½” FxF BSPT Brass Ball Valve c/w Blue T-Handle Operator CP90TB-T020 ¾” FxF BSPT Brass Ball Valve c/w Blue T-Handle Operator CP90TB-T025 1” FxF BSPT Brass Ball Valve c/w Blue T-Handle Operator CP90TR-T015 ½” FxF BSPT Brass Ball Valve c/w Red T-Handle Operator CP90TR-T020 ¾” FxF BSPT Brass Ball Valve c/w Red T-Handle Operator CP90TR-T025 1” FxF BSPT Brass Ball Valve c/w Red T-Handle Operator CP90XB-T015 ½” FxF BSPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-T020 ¾” FxF BSPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-T025 1” FxF BSPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-T032 1 ¼” FxF BSPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-T040 1 ½” FxF BSPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-T050 2” FxF BSPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XR-T015 ½” FxF BSPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-T020 ¾” FxF BSPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-T025 1” FxF BSPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-T032 1 ¼” FxF BSPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-T040 1 ½” FxF BSPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-T050 2” FxF BSPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90LGW-T015 ½” FxF BSPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-T020 ¾” FxF BSPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-T025 1” FxF BSPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-T032 1 ¼” FxF BSPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-T040 1 ½” FxF BSPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-T050 2” FxF BSPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve BSPP = BSPParallel, BSPT = BSPTaper NB: The LGW designation simply denotes that the valve is supplied bagged as a kit with a loose Red and Blue sleeve. CP90LB-N015 ½” FxF NPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-N020 ¾” FxF NPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-N025 1” FxF NPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-N032 1 ¼” FxF NPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-N040 1 ½” FxF NPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LB-N050 2” FxF NPT Brass Ball Valve c/w Blue Sleeved Lever Operator CP90LR-N015 ½” FxF NPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-N020 ¾” FxF NPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-N025 1” FxF NPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-N032 1 ¼” FxF NPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-N040 1 ½” FxF NPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90LR-N050 2” FxF NPT Brass Ball Valve c/w Red Sleeved Lever Operator CP90TB-N015 ½” FxF NPT Brass Ball Valve c/w Blue T-Handle Operator CP90TB-N020 ¾” FxF NPT Brass Ball Valve c/w Blue T-Handle Operator CP90TB-N025 1” FxF NPT Brass Ball Valve c/w Blue T-Handle Operator CP90TR-N015 ½” FxF NPT Brass Ball Valve c/w Red T-Handle Operator CP90TR-N020 ¾” FxF NPT Brass Ball Valve c/w Red T-Handle Operator CP90TR-N025 1” FxF NPT Brass Ball Valve c/w Red T-Handle Operator CP90XB-N015 ½” FxF NPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-N020 ¾” FxF NPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-N025 1” FxF NPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-N032 1 ¼” FxF NPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-N040 1 ½” FxF NPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XB-N050 2” FxF NPT Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP90XR-N015 ½” FxF NPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-N020 ¾” FxF NPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-N025 1” FxF NPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-N032 1 ¼” FxF NPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-N040 1 ½” FxF NPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90XR-N050 2” FxF NPT Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP90LGW-N015 ½” FxF NPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-N020 ¾” FxF NPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-N025 1” FxF NPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-N032 1 ¼” FxF NPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-N040 1 ½” FxF NPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP90LGW-N050 2” FxF NPT Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve BSPP = BSPParallel, BSPT = BSPTaper NB: The LGW designation simply denotes that the valve is supplied bagged as a kit with a loose Red and Blue sleeve. Model: CP89 L/LGW/T/X Product Codes: CP89LB-C15 CxC Brass Ball Valve c/w Blue Sleeved Lever Operator CP89LB-C22 CxC Brass Ball Valve c/w Blue Sleeved Lever Operator CP89LB-C28 CxC Brass Ball Valve c/w Blue Sleeved Lever Operator CP89LB-C35 CxC Brass Ball Valve c/w Blue Sleeved Lever Operator CP89LB-C42 CxC Brass Ball Valve c/w Blue Sleeved Lever Operator CP89LB-C54 CxC Brass Ball Valve c/w Blue Sleeved Lever Operator CP89LR-C15 CxC Brass Ball Valve c/w Red Sleeved Lever Operator CP89LR-C22 CxC Brass Ball Valve c/w Red Sleeved Lever Operator CP89LR-C28 CxC Brass Ball Valve c/w Red Sleeved Lever Operator CP89LR-C35 CxC Brass Ball Valve c/w Red Sleeved Lever Operator CP89LR-C42 CxC Brass Ball Valve c/w Red Sleeved Lever Operator CP89LR-C54 CxC Brass Ball Valve c/w Red Sleeved Lever Operator CP89TB-C15 CxC Brass Ball Valve c/w Blue T-Handle Operator CP89TB-C22 CxC Brass Ball Valve c/w Blue T-Handle Operator CP89TB-C28 CxC Brass Ball Valve c/w Blue T-Handle Operator CP89TR-C15 CxC Brass Ball Valve c/w Red T-Handle Operator CP89TR-C22 CxC Brass Ball Valve c/w Red T-Handle Operator CP89TR-C28 CxC Brass Ball Valve c/w Red T-Handle Operator CP89XB-C15 CxC Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP89XB-C22 CxC Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP89XB-C28 CxC Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP89XB-C35 CxC Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP89XB-C42 CxC Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP89XB-C54 CxC Brass Ball Valve c/w Blue Sleeved Locking Lever Operator CP89XR-C15 CxC Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP89XR-C22 CxC Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP89XR-C28 CxC Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP89XR-C35 CxC Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP89XR-C42 CxC Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP89XR-C54 CxC Brass Ball Valve c/w Red Sleeved Locking Lever Operator CP89LGW-C15 CxC Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP89LGW-C22 CxC Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP89LGW-C28 CxC Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP89LGW-C35 CxC Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP89LGW-C42 CxC Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve CP89LGW-C54 CxC Combination Brass Ball Valve c/w Lever Operator & Red and Blue Sleeve NB: The LGW designation simply denotes that the valve is supplied bagged as a kit with a loose Red and Blue sleeve. All valve options to be tested/approved for HOT and COLD applications.
