Fittings for use with Tube and Pipe

Section Code 1210 : End feed, for use with copper tube. Unless specified in the individual approval, the products within this section are not suitable for below ground use

Back To Directory Sections

#1904073

Range of copper end feed fittings, union fittings and threaded fittings for use with copper pipe. Maximum working pressure 16.0 bar. Maximum operating temperature 85°C.

Section:
1210 Fittings for use with Tube and Pipe
Section Subtitle:
End feed, for use with copper tube. Unless specified in the individual approval, the products within this section are not suitable for below ground use
WRAS Approval Number:
1904073
Expiry date:
30/04/2024
Size:
10mm to 108 mm. ¼” to 4” BSP (M) or (F).
Marking:
Wenling Honson Brassware logo (ISI) on fitting body.
Installation Requirements:
R001
Model:
"""HS110"" RANGE OF COPPER END FEED FITTINGS, UNION FITTINGS AND THREADED FITTINGS FOR USE WITH COPPER PIPE: 10MM TO 108 MM & ¼” TO 4” BSP (M) OR (F). (FOR MODELS COVERED PLEASE CONSULT THE WRAS ONLINE DIRECTORY AND/OR ACCOMPANYING WRAS APPROVAL LETTER)"
Manufacturer:
Wenling Honson Brassware Co Ltd
Company Name
Wenling Honson Brassware Co Ltd
Address
Yingtian Industrial Zone, Cheng-nan Town, Wenling City
Country
Zhejiang Province,

View All Listings by this Company

Print This Approval


#1907351

‘ICOOL’ range of copper end feed fittings for use with copper tube. Maximum working pressures: 16.0 bar for sizes 15mm to 22mm, 10.0 bar for sizes 28mm to 108mm. Maximum operating temperature 100°C.

Section:
1210 Fittings for use with Tube and Pipe
Section Subtitle:
End feed, for use with copper tube. Unless specified in the individual approval, the products within this section are not suitable for below ground use
WRAS Approval Number:
1907351
Expiry date:
31/07/2024
Size:
See model
Marking:
ICOOL and EN1254-1 on body
Installation Requirements:
R001
Model:
90 Degree Elbow: CFE9015: 15mm, CFE9022: 22mm, CFE9028: 28mm, CFE9035: 35mm, CFE9042: 42mm, CFE9054: 54mm, CFE9067: 67mm, CFE9076: 76mm, CFE90108: 108mm. Roll Stop Coupler: CFC15: 15mm, CFC22: 22mm, CFC28: 28mm, CFC35: 35mm, CFC42: 42mm, CFC54: 54mm, CFC67: 67mm, CFC76: 76mm, CFC108: 108mm. 90 Degree Street Elbow: CFSE9015: 15mm, CFSE9022: 22mm, CFSE9028: 28mm. Equal Tee: CFTEE15: 15mm, CFTEE22: 22mm, CFTEE28: 28mm, CFTEE35: 35mm, CFTEE42: 42mm, CFTEE54: 54mm, CFTEE67: 67mm, CFTEE76: 76mm, CFTEE108: 108mm. 45 Degree Elbow: CFE4515: 15mm, CFE4522: 22mm, CFE4528: 28mm, CFE4535: 35mm, CFE4542: 42mm, CFE4554: 54mm, CFE4567: 67mm, CFE4576: 76mm, CFE45108: 108mm.
Manufacturer:
ICOOL NINGBO CO., LTD.
Company Name
ICOOL NINGBO CO., LTD.
Address
No. 175 Guangyuan Road, Jiangbei District, Ningbo
Country
China
Phone
+86 0574 87430514

View All Listings by this Company

Print This Approval


#2006344

Range of copper end feed fittings for use with copper tube. For above and below ground use. Maximum working pressure 16.0 bar. Maximum operating temperature 85°C

Section:
1210 Fittings for use with Tube and Pipe
Section Subtitle:
End feed, for use with copper tube. Unless specified in the individual approval, the products within this section are not suitable for below ground use
WRAS Approval Number:
2006344
Expiry date:
30/06/2025
Size:
6mm – 54mm.
Marking:
Double Winner logo (db over W) & size on body.
Installation Requirements:
R001
Model:
5001, 5002, 5040, 5041, 5090, 5092, 5085, 5086, 5270, 5301, 5240, 5243, 5130, 5130R, 5060, 5062, 5063, 5064, 5065 & 5270S, L5090.
Manufacturer:
Taizhou Double Winners Copper Co Ltd
Company Name
Taizhou Double Winners Copper Co Ltd
Address
#2‐902, Z Center, No. 185 Wenxue Road, Jiaojiang, Taizhou, 31800, Zhejiang, China

View All Listings by this Company

Print This Approval


#2006079

Range of copper end feed fittings for use with copper tube. For above and below ground use. Maximum working pressure 16.0 bar. Maximum operating temperature 85°C

Section:
1210 Fittings for use with Tube and Pipe
Section Subtitle:
End feed, for use with copper tube. Unless specified in the individual approval, the products within this section are not suitable for below ground use
WRAS Approval Number:
2006079
Expiry date:
30/06/2025
Size:
6mm – 54mm.
Marking:
FLOMASTA (BRAND OF KINGFISHER) & size on body.
Installation Requirements:
R001
Model:
5001, 5002, 5040, 5041, 5090, 5092, 5085, 5086, 5270, 5301, 5240, 5243, 5130, 5130R, 5060, 5062, 5063, 5064, 5065 & 5270S, L5090.
Factor:
Kingfisher International Products Ltd.
Company Name
Kingfisher International Products Ltd.
Address
3 Sheldon Square, Paddington, London
Postcode
W2 6PX

View All Listings by this Company

Print This Approval


#2011038

Range of end feed copper fittings for use with copper tube. Maximum working pressure 16.0 bar. Maximum operating temperature 95°C.

Section:
1210 Fittings for use with Tube and Pipe
Section Subtitle:
End feed, for use with copper tube. Unless specified in the individual approval, the products within this section are not suitable for below ground use
WRAS Approval Number:
2011038
Expiry date:
30/11/2025
Size:
Please refer to model.
Marking:

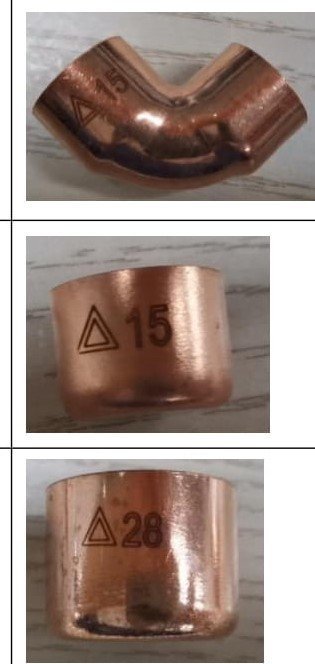

◊ A ◊ (Masterflow logo) and 'SIZE' on body.
Installation Requirements:
R001
Model:
Masterflow soldered endfeed: Straight Coupler 8mm to 54mm. Reduced Coupler 8mm to 54mm. Fitting Reducer 8mm to 54mm. Fitting Reduce (Long) 8mm to 15mm. Imperial/Metric Coupler 1/2”x15mm.3/4”x22mm.1”x28mm. Slip Coupler 15mm to 28mm. C x Fl Straight Coupler 15mm x 1/2”,15mm x 3/4”,22mm x 3/4”, 28mm x 1”,35mm x 1.1/4”,42mm x 1.1/2”,54mm x 2”. Cx Ml Straight Coupler 15mm x 1/4”,15mm x 1/2”,22mm x 1/2”, 22mm x 3/4”,28mm x 1”,35mm x 1.1/4”,42mm x 1.1/2”,54mm x 2”. C x Fl 15mm x 1/2”,22mm x 3/4.” C x Ml Elbow 15mm x 1/2”,22mm x 3/4”. 90 deg Elbow 8mm to 54mm. 90 deg Street Elbow 10mm to 54mm. Obtuse Street Elbow 15mm to 54mm. End Feed Long Radius Street Elbow 15mm x 54mm. 45 deg Obtuse Elbow 15mm to 54mm. Wallplate Elbow 15mm x 1/2”. Part Crossover 15mm to 22mm. Full Crossover 15mm to 22mm. Equal Tee 10mm to 54mm. Reduced Branch Tee 10mm to 54mm. Reduced End Tee 15mm to 54mm. Reduced End & Branch Tee 15mm to 54mm. Both Ends Reduced Tee 15mm x 28mm. Extended Street Elbow 15mm x 150mm. Fl Tee (Fl On Run) 15mm x 1/2” x 15mm, 22mm x 1/2” x 22mm. Fl Tee (On Run) 15 x 15 x 1/2”,22 x22 x 1/2”,22 x 22 x 3/4”. Stop End 8mm to 54mm. Straight Tap Connector 15mm x 1/2”,15mm x 3/4”, 22mm x 3/4”. Bent Cap Connector 15mm x 1/2”,15mm x 3/4”,22mm x 3/4”. Bent Union Adaptor 22mm x 1”. Straight Union Adaptor 22mm x 3/4”,22mm x 1”,28mm x 1”. Air Vent Cap 15mm and 22mm. U Bend 15mm.
Factor:
Masterflow UK
Company Name
Masterflow UK
Address
Astley Park Estate, The Gatehouse, Kennedy Road, Astley, Manchester
Postcode
M29 7JY

View All Listings by this Company

Print This Approval


#2011053

End Feed Range copper fittings for use with copper tube. For above and below ground use Maximum working pressure 20.0 bar. Maximum operating temperature 85°C.

Section:
1210 Fittings for use with Tube and Pipe
Section Subtitle:
End feed, for use with copper tube. Unless specified in the individual approval, the products within this section are not suitable for below ground use
WRAS Approval Number:
2011053
Expiry date:
30/11/2025
Size:
8mm, 10mm, 15mm, 22mm, 28mm, 35mm, 42mm & 54mm.
Marking:
Linhai Hengye Tubing logo (IOJ) and size on body.
Installation Requirements:
R0001
Model:
5090 (Elbows), 5270 (Couplings) & 5130 (Tees).
Manufacturer:
Linhai Hengye Tubing Equipment Co Ltd
Company Name
Linhai Hengye Tubing Equipment Co Ltd
Address
Duqiao, Linhai, Zhejiang
Country
China

View All Listings by this Company

Print This Approval


#2101805

Range of copper end feed fittings for use with copper tube. For above and below ground use. Maximum working pressure 25.0 bar. Maximum operating temperature 99°C.

Section:
1210 Fittings for use with Tube and Pipe
Section Subtitle:
End feed, for use with copper tube. Unless specified in the individual approval, the products within this section are not suitable for below ground use
WRAS Approval Number:
2101805
Expiry date:
31/01/2026
Size:
SEE MODEL
Marking:
6mm & 8mm = JT (brand logo) and size on body. All other sizes = JT (brand logo) on body.
Installation Requirements:
R001
Model:
Straight Coupler: EFC-08: 8mm. EFC-10: 10mm. EFC-12: 12mm. EFC-15: 15mm. EFC-L-15: 15mm. EFC-18: 18mm. EFC-22: 22mm. EFC-L-22: 22mm. EFC-28: 28mm. EFC-L-28: 28mm. EFC-35: 35mm. EFC-42: 42mm. EFC-54: 54mm. EFC-67: 67mm. EFC-76: 76mm. EFC-108: 108mm. EFC-133: 133mm. EFC-159: 159mm. Slip Coupler: EFCS-15: 15mm. EFCS-18: 18mm. EFCS-22: 22mm. EFCS-28: 28mm. EFCS-35: 35mm. EFCS-42: 42mm. EFCS-54: 54mm. EFCS-67: 67mm. EFCS-76: 76mm. EFCS-108: 108mm. EFCS-133: 133mm. EFCS-159: 159mm. Reducing Coupler: EFRC-1008: 10-08mm. EFRC-1508: 15-08mm. EFRC-1510: 15-10mm. EFRC-1512: 15-12mm. EFRC-2215: 22-15mm. EFRC-L- 2215: 22-15mm. EFRC-2815: 28-15mm. EFRC-L- 2815: 28-15mm. EFRC-2822: 28-22mm. EFRC-3515: 35-15mm. EFRC-3522: 35-22mm. EFRC-3528: 35-28mm. EFRC-4215: 42-15mm. EFRC-4222: 42-22mm. EFRC-4228: 42-28mm. EFRC-4235: 42-35mm. EFRC-5415: 54-15mm. EFRC-5422: 54-22mm. EFRC-5428: 54-28mm. EFRC-5435: 54-35mm. EFRC-5442: 54-42mm. Fitting Reducer: EFFR-1008: 10-08mm. EFFR-1208: 12-08mm. EFFR-1210: 12-10mm. EFFR-1508: 15-08mm. EFFR-1510: 15-10mm. EFFR-1512: 15-12mm. EFFR-2215: 22-15mm. EFFR-L-2215: 22-15mm. EFFR-2815: 28-15mm. EFFR-2822: 28-22mm. EFFR-3515: 35-15mm. EFFR-3522: 35-22mm. EFFR-3528: 35-28mm. EFFR-4215: 42-15mm. EFFR-4222: 42-22mm. EFFR-4228: 42-28mm. EFFR-4235: 42-35mm. EFFR-5415: 54-15mm. EFFR-5422: 54-22mm. EFFR-5428: 54-28mm. EFFR-5435: 54-35mm. EFFR-5442: 54-42mm. EFFR-6715: 67-15mm. EFFR-6722: 67-22mm. EFFR-6728: 67-28mm. EFFR-6735: 67-35mm. EFFR-6742: 67-42mm. EFFR-6754: 67-54mm. EFFR-7628: 76-28mm. EFFR-7635: 76-35mm. EFFR-7642: 76-42mm. EFFR-7654: 76-54mm. EFFR-7667: 76-67mm. EFFR-10835: 108-35mm. EFFR-10842: 108-42mm. EFFR-10854: 108-54mm. EFFR-10867: 108-67mm. EFFR-10876: 108-76mm. Long Fitting Reducer with long tail: EFFRL-1508: 15-08mm. EFFRL-1510: 15-10mm. 90° Long Street Elbow: EFESL-12: 12 mm. EFESL-15: 15 mm. EFESL-18: 18mm. EFESL-22: 22 mm. EFESL-28: 28mm. EFESL-35: 35mm. EFESL-42: 42mm. EFESL-54: 54mm. EFESL-67: 67mm. EFESL-76: 76mm. EFESL-108: 108mm. EFESL-133: 133mm. EFESL-159: 159mm. 90° Long Elbow: EFE-L-12: 12 mm. EFE-L-15: 15 mm. EFE-L-18: 18mm. EFE-L-22: 22 mm. EFE-L-28: 28mm. EFE-L-35: 35mm. EFE-L-42: 42mm. EFE-L-54: 54mm. EFE-L-67: 67mm. EFE-L-76: 76mm. EFE-L-108: 108mm. EFE-L-133: 133mm. EFE-L-159: 159mm. 90° Elbow: EFE-06: 6mm. EFE-08: 8mm. EFE-10: 10mm. EFE-15: 15mm. EFE-L-15: 15mm. EFE-18: 18mm. EFE-22: 22mm. EFE-L-22: 22mm. EFE-28: 28mm. EFE-L-28: 28mm. EFE-35: 35mm. EFE-42: 42mm. EFE-54: 54mm. EFE-67: 67mm. EFE-76: 76mm. EFE-108: 108mm. EFE-133: 133mm. EFE-159: 159mm. 45° Elbow: EFE/45-8: 8mm. EFE/45-10: 10mm. EFE/45-15: 15mm. EFE-L/45-15: 15mm. EFE/45-18: 18mm. EFE/45-22: 22mm. EFE-L/45-22: 22mm. EFE/45-28: 28mm. EFE-L/45-28: 28mm. EFE/45-35: 35mm. EFE/45-42: 42mm. EFE/45-54: 54mm. EFE/45-67: 67mm. EFE/45-76: 76mm. EFE/45-108: 108mm. EFE/45-159: 159mm. 90° Street Elbow: EFES-8: 8mm. EFES-10: 10 mm. EFES-15: 15mm. EFES-L-15: 15mm. EFES-18: 18mm. EFES-22: 22mm. EFES-L-22: 22mm. EFES-28: 28mm. EFES-L-28: 28mm. EFES-35: 35mm. EFES-42: 42mm. EFES-54: 54mm. EFES-67: 67mm. EFES-76: 76mm. EFES-108: 108mm. EFES-133: 133mm. EFES-159: 159mm. 45° Street Elbow: EFES/45-8: 8mm. EFES/45-10: 10 mm. EFES/45-15: 15mm. EFES/45-18: 18mm. EFES/45-22: 22mm. EFES/45-28: 28mm. EFES/45-35: 35mm. EFES/45-42: 42mm. EFES/45-54: 54mm. EFES/45-133: 133mm. EFES/45-159: 159mm. Equal Tee: EFET-06: 6mm. EFET-08: 8mm. EFET-10: 10mm. EFET-12: 12mm. EFET-15: 15mm. EFET-L-15: 15mm. EFET-18: 18mm. EFET-22: 22mm. EFET-L-22: 22mm. EFET-28: 28mm. EFET-L-28: 28mm. EFET-35: 35mm. EFET-42: 42mm. EFET-54: 54mm. EFET-67: 67mm. EFET-76: 76mm. EFET-108: 108mm. EFET-133: 133mm. EFET-159: 159mm. Reducing Tee: EFRT-101015: 10x10x15mm. EFRT-151010: 15x10x10mm. EFRT-151015: 15x10x15mm. EFRT-151508: 15x15x08mm. EFRT-151510: 15x15x10mm. EFRT-151512: 15x15x12mm. EFRT-151522: 15x15x22mm. EFRT-221515: 22x15x15mm. EFRT-221522: 22x15x22mm. EFRT-L-221522: 22x15x22mm. EFRT-222210: 22x22x10mm. EFRT-222215: 22x22x15mm. EFRT-L-222215: 22x22x15mm. EFRT-222228: 22x22x28mm. EFRT-281515: 28x15x15mm. EFRT-281522: 28x15x22mm. EFRT-281528: 28x15x28mm. EFRT-282215: 28x22x15mm. EFRT-282222: 28x22x22mm. EFRT-282228: 28x22x28mm. EFRT-282815: 28x28x15mm. EFRT-282822: 28x28x22mm. EFRT-282835: 28x28x35mm. EFRT-352222: 35x22x22mm. EFRT-352235: 35x22x35mm. EFRT-352822: 35x28x22mm. EFRT-352828: 35x28x28mm. EFRT-352835: 35x28x35mm. EFRT-353515: 35x35x15mm. EFRT-353522: 35x35x22mm. EFRT-353528: 35x35x28mm. EFRT-422828: 42x28x28mm. EFRT-422842: 42x28x42mm. EFRT-423535: 42x35x35mm. EFRT-423542: 42x35x42mm. EFRT-424215: 42x42x15mm. EFRT-424222: 42x42x22mm. EFRT-424228: 42x42x28mm. EFRT-424235: 42x42x35mm. EFRT-544254: 54x42x54mm. EFRT-545415: 54x54x15mm. EFRT-545422: 54x54x22mm. EFRT-545428: 54x54x28mm. EFRT-545435: 54x54x35mm. EFRT-545442: 54x54x42mm. EFRT-675467: 67x54x67mm. EFRT-676728: 67x67x28mm. EFRT-676735: 67x67x35mm. EFRT-676742: 67x67x42mm. EFRT-676754: 67x67x54mm. EFRT-767628: 76x76x28mm. EFRT-767635: 76x76x35mm. EFRT-767642: 76x76x42mm. EFRT-767654: 76x76x54mm. EFRT-767667: 76x76x67mm. EFRT-10810854: 108x108x54mm. EFRT-10810867: 108x108x67mm. EFRT-10810876: 108x108x76mm. EFRT-13313354: 133x133x54mm. EFRT-133133108: 133x133x108mm. EFRT-15915954: 159x159x54mm. EFRT-159159133: 159x159x133mm. Full crossover: EFFCO-10: 10 mm. EFFCO-12: 12 mm. EFFCO-15: 15 mm. EFFCO-18: 18mm. EFFCO-22: 22 mm. EFFCO-28: 28mm. Partial Crossover: EFPCO-10: 10mm. EFPCO-15: 15mm. EFPCO-18: 18mm. EFPCO-22: 22mm. End cap: EFEC-08: 8mm. EFEC-10: 10mm. EFEC-15: 15mm. EFEC-18: 18mm. EFEC-22: 22mm. EFEC-28: 28mm. EFEC-35: 35mm. EFEC-42: 42mm. EFEC-54: 54mm. EFEC-67: 67mm. EFEC-76: 76mm. EFEC-108: 108mm. EFEC-133: 133mm. EFEC-159: 159mm. Imp coupler: EFCOI-15: 15mm x 1/2”. EFCOI-15: 15mm x 3/4”. EFCOI-22: 22mm x 3/4”. EFCOI-28: 28mm x 1”. EFCOI-35: 35mm x 1 1/4”. EFCOI-42: 42mm x 1 1/2”. EFCOI-54: 54mm x 1 3/4”. EFCOI-67: 67mm x 2”. EFCOI-76: 76mm x 3”. EFCOI-108: 108mm x 4”. Male Adapter: EFMA-15 1/4: 15mm x 1/4”. EFMA-15 3/8: 15mm x 3/8”. EFMA-15 2/1: 15mm x 1/2”. EFMA-15 3/4: 15mm x 3/4”. EFMA-22 3/4: 22mm x 3/4”. EFMA-22 1: 22mm x 1”. EFMA-28 1: 28mm x 1”. EFMA-35 1 1/4: 35mm x 1 1/4”. EFMA-42 1 1/2: 42mm x 1 1/2”. EFMA-54 2: 54mm x 2”. EFMA-67 2 1/2: 67mm x 2 1/2”. EFMA-76 3: 76mm x 3”. Female Adapter: EFFA-15 1/4: 15mm x 1/4”. EFFA-15 3/8: 15mm x 3/8”. EFFA-15 1/2: 15mm x 1/2”. EFFA-22 3/4: 22mm x 3/4”. EFFA-28 1: 28mm x 1”. EFFA-35 1 1/4: 35mm x 1 1/4”. EFFA-42 1 1/2: 42mm x 1 1/2”. EFFA-54 2: 54mm x 2”. Straight Tap connector: EFSTC-15 1/2: 15mm x 1/2”. EFSTC-15 3/4: 15mm x 3/4”. EFSTC-22 3/4: 22mm x 3/4”. EFSTC-28 1: 28mm x 1”. EFSTC-22 1: 22mm x 1”. Bent tap connector: EFBTC-15 1/2: 15mm x 1/2”. EFBTC-15 3/4: 15mm x 3/4”. EFBTC-22 3/4: 22mm x 3/4”. EFBTC-28 1: 28mm. x1”. EFBTC-22 1: 22mm x 1”. Straight Tap connector (With Gasket): EFSCU-15 1/2: 15mm x 1/2”. EFSCU-15 3/4: 15mm x 3/4”. EFSCU-22 3/4: 22mm x 3/4”. EFSCU-22 1: 22mm x 1”. EFSCU-28 1: 28mm x 1”. Bent tap connector (with Gasket): EFBCU-15 1/2: 15mm x 1/2”. EFBCU-15 3/4: 15mm x 3/4”. EFBCU-22 3/4: 22mm x 3/4”. EFBCU-22 1: 22mm x 1”. EFBCU-28 1: 28mm x 1”. Straight cylinder union: EFSCC-151/2: 15mm x 1/2”. EFSCC-153/4: 15mm x 3/4”. EFSCC-223/4: 22mm x 3/4”. EFSCC-221: 22mm x 1”. EFSCC-281: 28mm x 1”. Models added April 2021: Fitting Reducer: EFFR-L-1510, 15-10mm EFFR-L-2822, 28-22mm 45° Elbow: EFE/45-133, 133mm End cap: EFEC-L-15, 15mm EFEC-L-22, 22mm
Factor:
Ningbo Jintian Copper Tube Co Ltd
Company Name
Ningbo Jintian Copper Tube Co Ltd
Address
No.1 ChengXi West Road, CiCheng, NingBo
Country
China
Phone
0086 574 8757 4425
General Email
audrey@jtcorp.com.cn

View All Listings by this Company

Print This Approval


#2006368

Range of copper end feed fittings for use with copper tube. For above and below ground use. Maximum working pressure 16.0 bar. Maximum operating temperature 85°C

Section:
1210 Fittings for use with Tube and Pipe
Section Subtitle:
End feed, for use with copper tube. Unless specified in the individual approval, the products within this section are not suitable for below ground use
WRAS Approval Number:
2006368
Expiry date:
30/06/2025
Size:
6mm – 54mm.
Marking:
Endex on fitting body
Installation Requirements:
R001
Model:
NS12 / 5090 15 Elbow NS12 / 5090 22 Elbow NS1 / 5270 22 Coupling NS1 / 5270 15 Coupling NS24 / 5130 15 Equal Tee NS12S / 5092 15 Street Elbow NS6 / 5243 22x15 Reducer N12 / 5090 28 Elbow NS24 / 5130 22 Equal Tee N12S / 5092 22 Street Elbow N1 / 5270 28 Coupling N6 / 5243 28x22 Reducer N21 / 5041 15 Bend 45 N12 / 5090 10 Elbow N1R / 5240 15x10 Red Coupling N21 / 5041 22 Bend 45 N24 / 5130 28 Equal Tee N21 / 5041 28 Bend 45 N1 / 5270 10 Coupling N1 SLIP / 5270S 15 Slip Coupling N63 15x1/2 Bent Tap Connector N6 / 5243 15x8 Reducer N12S / 5092 28 Street Elbow N6 / 5243 28x15 Reducer N12 / 5090 8 Elbow N1 / 5270 8 Coupling N1 SLIP / 5270S 22 Slip Coupling N6 / 5243 10x8 Reducer N24 / 5130 10 Equal Tee NS25 22x22x15 / 5130 22x15x22 T N1 SLIP / 5270S 28 Slip Coupling N63 22x3/4 Bent Tap Connector N24 / 5130 8 Equal Tee N26 22x15x22 / 5130 22x22x15 T NS62 / 5240G 15x1/2 TapConnector N25 28x28x15 / 5130 28x15x28 T N27 22x15x15 / 5130 22x15x15 T N61 / 5301 15 Stop End N61 / 5301 22 Stop End N12 / 5090 35 Elbow N21S / 5040 28 St Bend 45 N27 28x22x22 / 5130 28x22x22 T N6 / 5243 35x28 Reducer N1IM / 5241 3/4x22 Adpt Coup N21S / 5040 22 St Bend 45 N62 / 5240G 15x3/4 Tap Connector N21S / 5040 15 St Bend 45 N26 28x15x28 / 5130 28x28x15 T N22 / 5086 15 Part crossover N25 28x28x22 / 5130 28x22x28 T MEF1 35 Coupling MEF21 35 Obtuse Elbow N1R / 5240 28x22 Red Coupling MEF12 42 Elbow N28 15x15x22 / 5130 15x22x15 T N62 / 5240G 22x3/4 Tap Connector N26 28x22x28 / 5130 28x28x22 T N1R / 5240 22x15 Red Coupling N1IM / 5241 1/2x15 Adpt Coup MEF6 42x28 Reducer MEF6 42x35 Reducer MEF25 35x35x15 Tee Red Branch MEF6 35x22 Reducer N23 / 5085 15 Full crossover MEF6 54x42 Reducer N61 / 5301 28 Stop End MEF25 35x35x22 Tee Red Branch N22 / 5086 22 Part crossover MEF6 42x22 Reducer MEF21 42 Obtuse Elbow MEF1 42 Coupling MEF25 35x35x28 Tee Red Branch MEF6 54x28 Reducer MEF12S 35 Street Elbow MEF24 54 Equal Tee N23 / 5085 22 Full crossover MEF25 42x42x15 Tee Red Branch N1IM / 5270 1x28 Adpt Coup MEF6 35x15 Reducer MEF24 35 Equal Tee MEF21S 35 Obtuse Street Elbow MEF25 54x54x22 Tee Red Branch MEF25 42x42x22 Tee Red Branch MEF24 42 Equal Tee MEF12 54 Elbow MEF12S 54 Street Elbow N27 28x22x15 / 5130 28x15x22 T MEF25 54x54x28 Tee Red Branch MEF25 42x42x28 Tee Red Branch MEF25 42x42x35 Tee Red Branch MEF6 54x22 Reducer MEF25 54x54x42 Tee Red Branch MEF25 54x54x35 Tee Red Branch MEF6 54x15 Reducer MEF61 42 Stop End MEF26 35x22x35 Tee Red End MEF6 54x35 Reducer MEF12S 42 Street Elbow MEF25 54x54x15 Tee Red Branch MEF27 35x28x15 Tee Red End/Branch MEF12S 10 Street Elbow MEF61 8 Stop End MEF27 35x28x28 Tee Red End/Branch MEF21 54 Obtuse Elbow MEF27 42x35x35 Tee Red End/Branch MEF1 54 Coupling MEF21S 42 Obtuse Street Elbow N27 28x15x22 / 5130 28x22x15 T MEF27 54x42x42 Tee Red End/Branch N27 28x15x15 / 5130 28x15x15 T MEF61 10 Stop End MEF1R 28x15 Red Coupling MEF26 35x28x35 Tee Red End MEF61 35 Stop End MEF61 54 Stop End MEF25 15x15x10 Tee Red Branch MEF6 42x15 Reducer MEF63 15x3/4 Bent Tap Connector MEF1R 10x8 Red Coupling MEF1R 15x10 Red Coupling N12 / 5090 12 Elbow N18S / 5001A 12 St Bend N18S / 5001A 15 St Bend N18S / 5001A 16 St Bend N18S / 5001A 18 St Bend N18S / 5001A 22 St Bend N18S / 5001A 28 St Bend N18 / 5002A 12 Bend 90 N18 / 5002A 15 Bend 90 N18 / 5002A 18 Bend 90 N18 / 5002A 22 Bend 90 N18 / 5002A 28 Bend 90 N21S / 5040 12 St Bend 45 N21S / 5040 16 St Bend 45 N21S / 5040 18 St Bend 45 N21 / 5041 12 Bend 45 N21 / 5041 18 Bend 45 N23 / 5085 18 Full crossover N22 / 5086 18 Part crossover N12 / 5090 18 Elbow N12S / 5092 12 Street Elbow N12S / 5092 18 Street Elbow N24 / 5130 12 Equal Tee N24 / 5130 18 Equal Tee N28 12x12x15 / 5130 12x15x12 T N27 15x12x12 / 5130 15x12x12 T N28 15x15x18 / 5130 15x18x15 T N27 18x12x12 / 5130 18x12x12 T N27 18x15x12 / 5130 18x12x15 T N25 18x18x12 / 5130 18x12x18 T N27 18x15x15 / 5130 18x15x15 T N25 18x18x15 / 5130 18x15x18 T N26 18x15x18 / 5130 18x18x15 T N28 18x18x22 / 5130 18x22x18 T N25 22x22x12 / 5130 22x12x22 T N27 22x18x15 / 5130 22x15x18 T N27 22x18x18 / 5130 22x18x18 T N25 22x22x18 / 5130 22x18x22 T N26 22x18x22 / 5130 22x22x18 T N28 22x22x28 / 5130 22x28x22 T N27 28x22x18 / 5130 28x18x22 T N25 28x28x18 / 5130 28x18x28 T N1R / 5240 15x12 Red Coupling N1R / 5240 16x12 Red Coupling N1R / 5240 18x15 Red Coupling N1R / 5240 18x16 Red Coupling N1R / 5240 22x16 Red Coupling N1R / 5240 22x18 Red Coupling 5240 64x54 Red Coupling N6 / 5243 15x12 Reducer N6 / 5243 16x12 Reducer N6 / 5243 18x15 Reducer N6 / 5243 22x16 Reducer N6 / 5243 22x18 Reducer N6 / 5243 28x18 Reducer N1 / 5270 12 Coupling N1 / 5270 18 Coupling N1 SLIP / 5270S 12 Slip Coupling N1 SLIP / 5270S 18 Slip Coupling N61 / 5301 18 Stop End
Factor:
Aalberts Integrated Piping Systems Ltd.
Company Name
Aalberts Integrated Piping Systems Ltd.
Address
St. Catherines Avenue Doncaster South Yorkshire
Postcode
DN4 8DF
Country
United Kingdom
Phone
01302 560560

View All Listings by this Company

Print This Approval


#2011341

Range of brass and copper fittings for use with EN 1057 copper tube. For above ground use only. Maximum working pressure 18.6 bar. Maximum operating temperature 100°C.

Section:
1210 Fittings for use with Tube and Pipe
Section Subtitle:
End feed, for use with copper tube. Unless specified in the individual approval, the products within this section are not suitable for below ground use
WRAS Approval Number:
2011341
Expiry date:
30/11/2025
Size:
See model
Marking:
Endex Logo or Endbraze on body.
Installation Requirements:
R001
Model:
N1 Straight Coupling: 88030 - 67mm 89600 - 76mm 89601 - 108mm 89697 - 133mm 89698 - 159mm B12 Elbow: 88456 – 67mm 89619 – 76mm N61 Stop End: 89090 – 67mm 89694 – 76mm 89695 – 108mm N69P Straight Male Union Connector: 89253 – 67mm N1IM Met x Imp Adaptor Coupling: 89617 – 76mm x 3” 89618 – 108mm x 4” N18 Slow Bend: 89639 – 67mm 89640 – 76mm 89741 – 108mm 89709 – 133mm 89710 – 159mm N1FMGI Bi-Metal Flange: 88028 – 42mm (4 holes) 88029 – 54mm (4 holes) 88114 – 67mm (4 holes) 89603 – 76mm (8 holes) 89604 – 108mm (8 holes) 89602 – 133mm (8 holes) 89719 – 159mm (8 holes) N3 Straight Male Connector: 88200 – 67mm x 2 ½” 89615 – 76mm x 3” 89616 – 108mm x 4” N21 Obtuse Elbow: 88653 – 67mm 89645 – 76mm 89646 – 108mm 89711 – 133mm 89712 – 159mm N1FMB Gunmetal Flange: 89605 – 76mm (8 holes) N6 Reducer: 88310 – 67mm x 28mm 88311 – 67mm x 35mm 88312 – 67mm x 42mm 88313 – 67mm x 54mm 89624 – 76mm x 35mm 89625 – 76mm x 42mm 89626 – 76mm x 54mm 89627 – 76mm x 67mm 89630 – 108mm x 42mm 89631 – 108mm x 54mm 89632 – 108mm x 67mm 89633 – 108mm x 76mm 89699 – 133mm x 42mm 89700 – 133mm x 54mm 89701 – 133mm x 67mm 89702 – 133mm x 76mm 89703 – 133mm x 108mm 89704 – 159mm x 54mm 89705 – 159mm x 67mm 89706 – 159mm x 76mm 89707 – 159mm x 108mm 89708 – 159mm x 133mm N24 Equal Tee: 88719 – 67mm 89648 – 76mm 89649 – 108mm 89713 – 133mm 89714 – 159mm N25 Tee Reduced Branch: 88807 – 67mm x 67mm x 28mm 89055 – 67mm x 67mm x 35mm 89056 – 67mm x 67mm x 42mm 89057 – 67mm x 67mm x 54mm 89058 – 76mm x 76mm x 28mm 89000 – 76mm x 76mm x 35mm 89654 – 76mm x 76mm x 42mm 89001 – 76mm x 76mm x 54mm 89059 – 108mm x 108mm x 35mm 89660 – 108mm x 108mm x 54mm 89002 – 108mm x 108mm x 76mm 89715 – 133mm x 133mm x 54mm 89716 – 133mm x 133mm x 108mm 89717 – 159mm x 159mm x 54mm 89718 – 159mm x 159mm x133mm
Factor:
Aalberts Integrated Piping Systems Ltd.
Company Name
Aalberts Integrated Piping Systems Ltd.
Address
St. Catherines Avenue Doncaster South Yorkshire
Postcode
DN4 8DF
Country
United Kingdom
Phone
01302 560560

View All Listings by this Company

Print This Approval


#2105306

Range of capillary end feed bronze fittings for use with copper tube (manufactured to BS EN 1057). 15mm – 54mm fittings have a maximum working pressure of 25.0 bar. 67mm – 108mm fittings have a maximum working pressure of 16.0 bar. Maximum operating temperature 100°C.

Section:
1210 Fittings for use with Tube and Pipe
Section Subtitle:
End feed, for use with copper tube. Unless specified in the individual approval, the products within this section are not suitable for below ground use
WRAS Approval Number:
2105306
Expiry date:
31/05/2026
Note:
Above ground use only.
Size:
15mm – 108mm.
Marking:
Kembla & size on body.
Installation Requirements:
R001
Model:
FEN – Female 90° Elbow 15mm x 1/2” code FEN015 22mm x 1/2” code FEN02215 22mm x 3/4" code FEN022 28mm x 1” code FEN028 MEN – Male 90° Elbow 15mm x 1/2" code MEN015 FTE – Female Tee 22mm x 1/2" code FTE02215 35mm x 3/4" code FTE03522 42mm x 3/4" code FTE04222 42mm x 1” code FTE04228 54mm x 3/4" code FTE05422 54mm x 1” code FTE05428 FCE – Female Cross Tee 35mm x 3/4" code FCE03522 42mm x 3/4" code FCE04222 42mm x 1” code FCE04228 54mm x 3/4” code FCE05422 54mm x 1” code FCE05428 FCC – Female Coupler 15mm x 1/2" code FCC015 22mm x 3/4” code FCC022 28mm x 1” code FCC028 35mm x 1-1/4” code FCC035 42mm x 1-1/2” code FCC042 54mm x 2” code FCC054 67mm x 2-1/2” code FCC067 BTR – Reducing Coupling 22mm x 1/2" code BTR022 MCC – Male Coupler 15mm x 1/2" code MCC015 22mm x 3/4” code MCC022 28mm x 1” code MCC028 35mm x 1-1/4” code MCC035 42mm x 1-1/2” code MCC042 54mm x 2” code MCC054 67mm x 2-1/2” code MCC067 76mm x 3” code MCC076 108mm x 4” code MCC108
Factor:
KEMBLA (HK) LIMITED
Company Name
KEMBLA (HK) LIMITED

View All Listings by this Company

Print This Approval



Back To Directory Sections

Page 1 of 4
